Westek Electronics explains how standard power diodes improve industrial rectifier efficiency, reduce heat losses, and boost reliability in heavy-duty DC systems.
Industrial rectifiers are essential in Australian heavy-duty DC power systems, supporting applications like high-current DC supplies, battery charging, and process equipment that requires reliable AC-to-DC conversion. In these environments, standard power diodes are a proven, cost-effective option built to handle tough electrical and thermal demands. Improving rectifier efficiency by reducing losses and managing heat delivers practical benefits such as lower energy waste, reduced cooling requirements, less component stress, and higher uptime.
Where Efficiency Is Lost in Diode-Based Rectifier Systems
In a diode rectifier, losses are typically dominated by conduction and heat. As current increases, even small voltage drops translate into significant power dissipation, which must be removed through the thermal path. If heat is not controlled, junction temperature rises, and that can reduce performance margins and accelerate wear in the wider rectifier assembly.
Key loss points commonly include:
- Conduction losses: Forward voltage drop during conduction, which scales directly with current and duty cycle.
- Thermal losses: Dissipated power becomes heat, requiring effective transfer from junction to ambient through the mounting and heatsink.
- Commutation and dynamic effects: Current transfer between devices (and system inductance) can add stress and additional loss, especially with ripple or distorted supply conditions.
- Upstream system losses: Rectifiers can contribute to harmonic currents, increasing RMS current in transformers and cabling, which raises overall system losses beyond the rectifier itself.

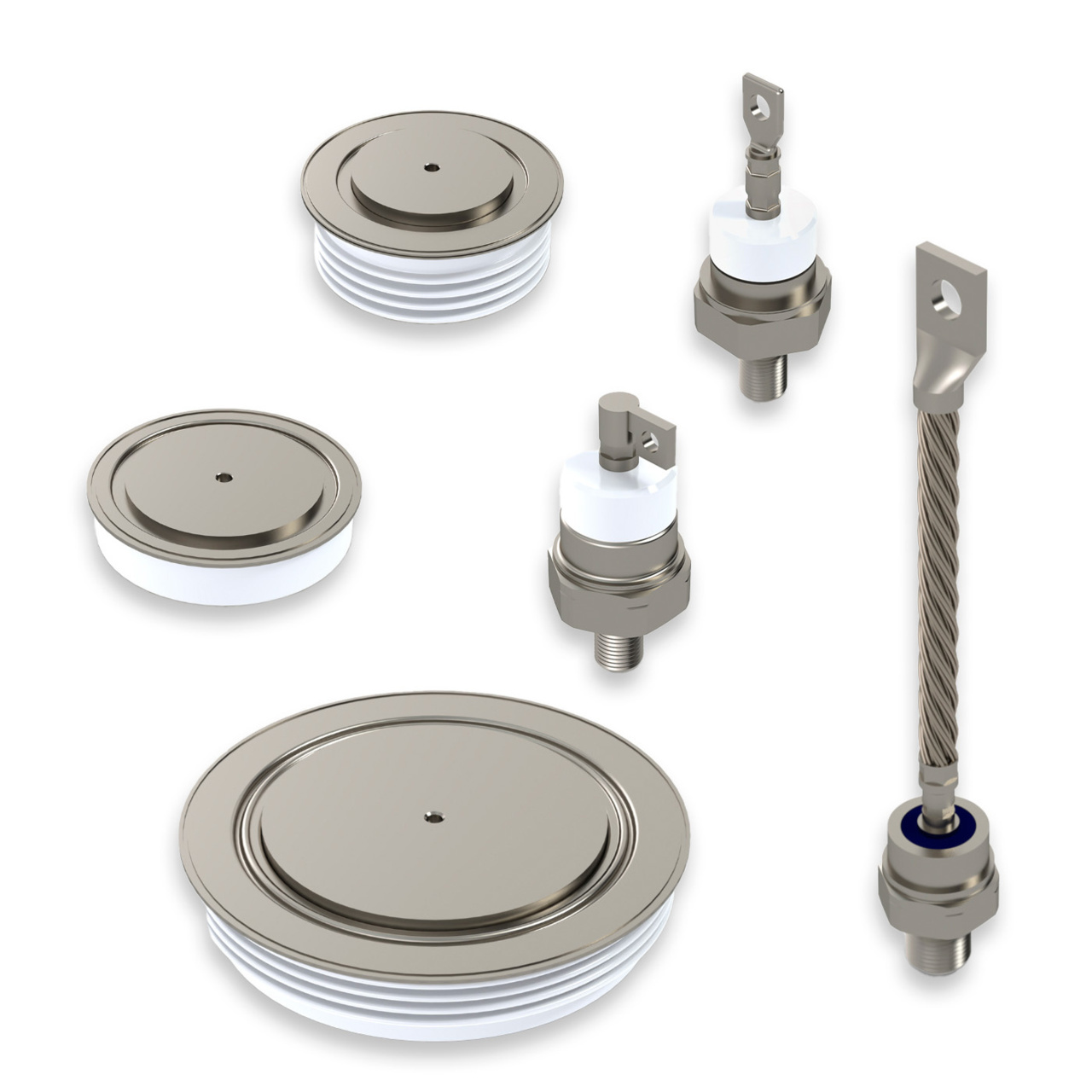

Selecting Standard Power Diodes for Efficiency and Reliability
Selecting the right diode means matching it to real operating conditions, not just the nameplate. Focus on average current, reverse voltage, surge capability, and thermal performance. In high-power rectifiers, the best choice is the one that stays stable through overloads, thermal cycling, and continuous operation.
When choosing standard power diodes, pay close attention to:
- Current rating with realistic derating: Ensure the diode can handle continuous current at the actual ambient temperature and cooling method, not just in ideal lab conditions.
- Voltage rating headroom: Provide adequate margin for supply variation, transients, and commutation behaviour.
- Surge robustness: Industrial environments can include inrush currents, fault events, and process-driven load steps. A diode with strong surge capability can reduce nuisance failures and downtime.
- Thermal pathway and mounting style: A diode’s electrical suitability is only half the story. The mounting interface, clamping pressure (where applicable), and heatsink design determine how efficiently heat is removed.
Practical Optimisation Checklist (Cooling, Topology, and Power Quality)
Most efficiency gains come from strong thermal design and smart system choices. Junction temperature rise depends on power loss and the total junction-to-ambient thermal resistance, which adds up across each layer of the heat path. Use the checklist below to apply this in practice.
Improve cooling performance:
- Confirm heatsink sizing for worst-case ambient conditions
- Use quality thermal interface materials and correct mounting torque or clamping
- Verify airflow is consistent and not recirculating hot exhaust
Optimise rectifier topology where appropriate:
- Review whether your application benefits from alternative arrangements (for example, multi-pulse rectification) to reduce upstream losses
- Check transformer and busbar design to minimise unnecessary voltage drop and heating
Manage power quality deliberately:
- Assess harmonics and distortion impacts on the broader electrical system
- Consider filtering and layout practices that reduce stress and improve stability
Get the Right Standard Power Diodes with Westek Electronics
At Westek Electronics, we help Australian industry improve rectifier performance by supporting the selection and application of standard power diodes that suit real operating demands. If you are upgrading an existing rectifier, designing new equipment, or troubleshooting overheating and efficiency losses, our team can assist with practical recommendations based on your current voltage, cooling, and reliability targets.
Contact us today to discuss your rectifier requirements and request support selecting the right diode solution for your application.
