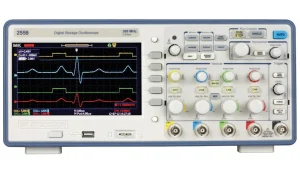

2550 Oscilloscope
The 2550 Series Digital Storage Oscilloscopes provide a combination of performance and value, available in both 2-channel and 4-channel configurations. With bandwidth options from 70 MHz to 300 MHz and a 2 GSa/s sample rate, these oscilloscopes offer powerful capabilities, including advanced triggering, 32 automatic measurements, and math functions. The series is ideal for use in R&D, education, and electronics testing environments.

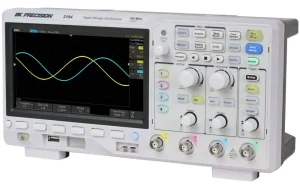

2194 Oscilloscope
The 2194 Oscilloscope is a powerful, portable solution offering 100 MHz bandwidth across 4 channels, making it ideal for applications requiring high precision, versatility, and affordability. This oscilloscope features a 1 GSa/s sample rate, 14 Mpts memory depth, and advanced capabilities such as segmented acquisition, FFT analysis, and serial decoding for multiple communication protocols. Its design and features make it an excellent choice for educational environments, hobbyists, and professionals working in a variety of applications like embedded systems, signal analysis, and circuit troubleshooting.

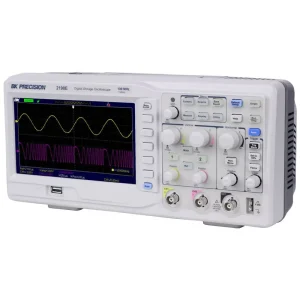

2190E Oscilloscope
The 2190E oscilloscope delivers high performance and exceptional value in a compact, portable package. With 100 MHz bandwidth, 1 GSa/s sample rate, and a large 7-inch widescreen display, it offers enhanced viewing and comprehensive features for a variety of measurement tasks. Whether you are an educator, technician, or engineer, the 2190E provides the necessary tools for advanced signal analysis at an affordable price.

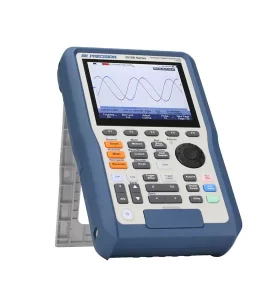

2510B Series Handheld Digital Storage Oscilloscopes
The 2510B Series handheld digital storage oscilloscopes combine floating measurement capabilities with a built-in digital multimeter (DMM) in a portable and lightweight package. Available in 100 MHz and 200 MHz bandwidth models, these oscilloscopes feature two channels with 1 GSa/s sample rates and 12 Mpts memory depth, providing high-resolution measurements and deep waveform capture. The series includes advanced features like 38 automatic measurements and multiple recording functions, making it ideal for capturing both transient and long-term signal behavior.
Models 2515B and 2516B provide full isolation between the oscilloscope channels, multimeter, power input, and USB ports, ensuring safe and reliable measurements in high-voltage environments.

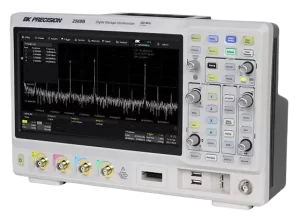

2560B Series Digital Storage Oscilloscopes (DSO) and Mixed Signal Oscilloscopes (MSO)
The 2560B Series offers a range of high-performance Digital Storage Oscilloscopes (DSO) and Mixed Signal Oscilloscopes (MSO), featuring 100 MHz, 200 MHz, and 350 MHz bandwidth models in a 4-channel configuration. These oscilloscopes are built for advanced debugging and signal analysis, with a 2 GSa/s maximum sample rate and an impressive 200 Mpts memory depth. The 10.1-inch capacitive touch display with a 1024 x 600 resolution allows for intuitive control and clear visibility of signals.
The 2560B Series includes models with built-in 50 MHz arbitrary waveform generators, serial bus decoding for various protocols, and a range of advanced features like Bode plots and power analysis. Users can also upgrade any DSO model to an MSO by adding 16 digital channels, making it a flexible tool for both analog and digital signal analysis.
