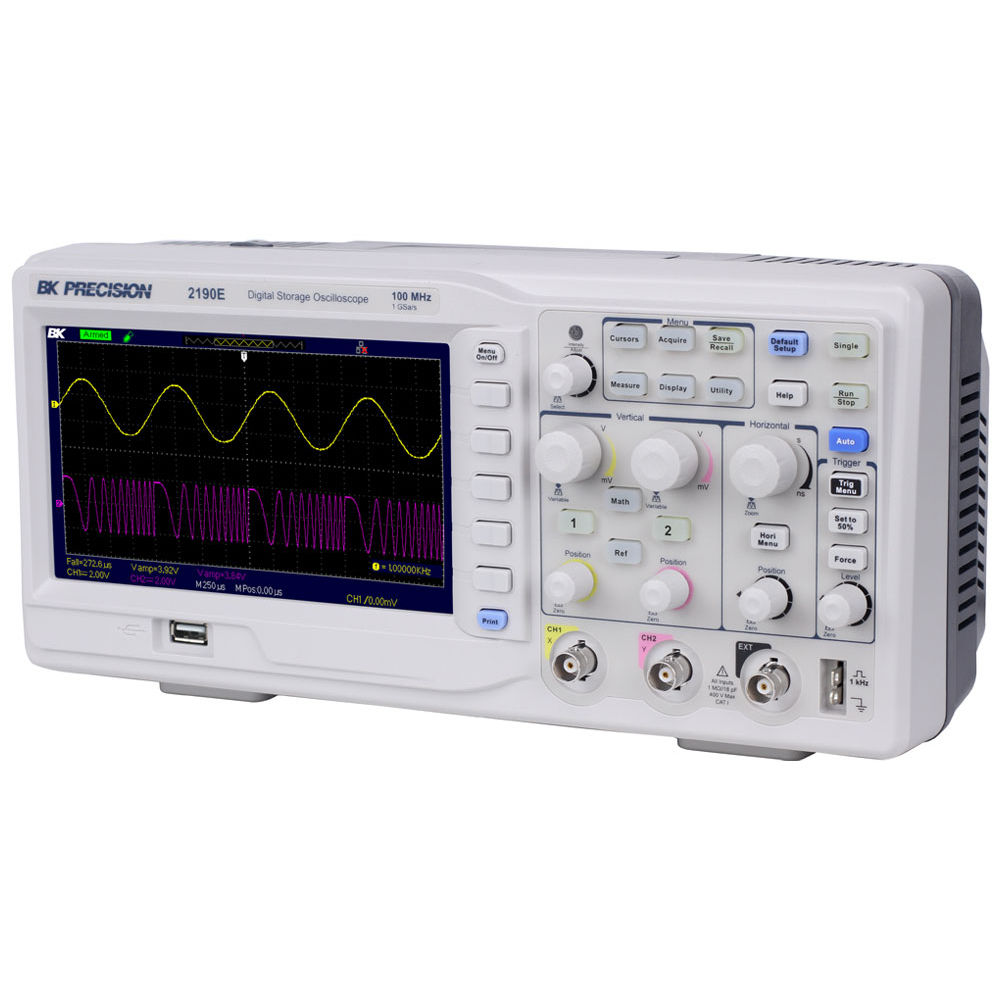

Key Features:
100 MHz Bandwidth with 1 GSa/s Sample Rate: Provides precise and fast signal capture, suitable for a range of testing applications.
Large 7″ Widescreen Color Display: Offers 800 x 480 resolution, providing a significantly larger viewing area compared to typical economy oscilloscopes with 5.7” displays.
32 Automatic Measurements: Includes a variety of measurement functions to simplify signal analysis.
FFT and Four Additional Math Functions: Perform complex signal analysis with built-in Fast Fourier Transform (FFT) and other math operations.
Versatile Triggering Capabilities: Trigger on pulse width, line-selectable video, slope, and alternating signals for more precise measurements.
Advanced Tools:
Digital Filter: Adjustable limits for signal conditioning.
Pass/Fail Testing: Automated testing based on user-defined criteria.
Waveform Recorder Mode: Record and playback waveforms for detailed signal examination.
Special EDU Mode: Designed for educators, this mode disables the Auto Set button, Measure menu, and Cursors menu, encouraging students to learn manual settings.
12 Language User Interface: Accessible in multiple languages for ease of use globally.
PC Software: Remotely control the oscilloscope, capture, save, and analyze waveform data on a connected PC.
USB and LAN Connectivity:
USB Host Port: Save and recall waveform setups, data, and screenshots to a USB flash drive.
USB Device Port: Supports SCPI commands for remote control via USBTMC-compliant devices.
LAN Interface: Enables remote control and data transfer over a network.
Optional GPIB Connectivity: Available via the USB-to-GPIB adapter (model AK40G).
Applications:
General-Purpose Testing: Suitable for a wide range of applications in electronics repair, production line testing, and troubleshooting.
Education: Ideal for teaching environments, especially with the built-in EDU mode for guided student learning.
Signal Analysis: Advanced triggering, FFT, and math functions make this oscilloscope versatile for in-depth signal analysis in R&D and design.
