High frequency Current probes and Rogowski Coils

Powertek I-Prober 520 Non-Clamp Current Probe

Isolated and Non-Intrusive High-Frequency Current Probe

The Powertek I-Prober 520 is a revolutionary non-contact and non-clamp current probe designed for fast, easy measurement of AC and DC currents in PCB tracks, component leads, and cables. Unlike traditional probes that require the conductor to pass through a magnetic loop, the I-Prober 520 works by placing the insulated tip directly onto a PCB track, allowing precise current measurement without cutting or interrupting circuits. It’s ideal for use in high-density PCBs and confined spaces.

Powertek CMC Rogowski Current Probe for Bearing Spark Erosion Currents

High-Frequency Common Mode Current Probe for VSDs and Bearing Spark Erosion Detection

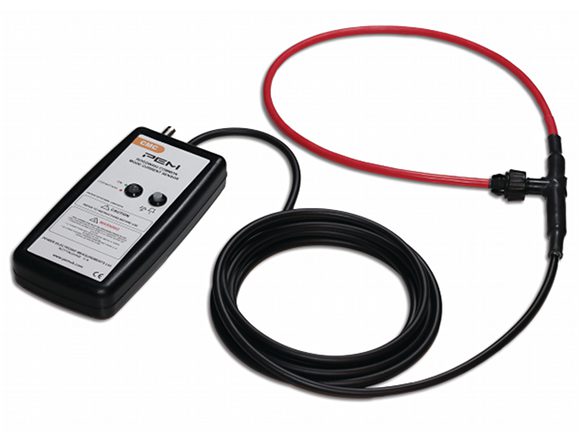

The CMC Rogowski Current Probe from Powertek is designed to measure high-frequency common mode currents in variable speed drives (VSDs), specifically targeting bearing spark erosion currents. These currents result from high-frequency voltages induced on the machine shaft due to capacitive coupling in VSD systems, which can lead to damaging discharges through motor bearings. Over time, these currents cause bearing erosion, resulting in premature motor failure, costly maintenance, and unplanned downtime.

The CMC probe is a flexible, clip-around current sensor that builds on Powertek’s successful CWT Rogowski sensor range. It enables engineers to detect and measure the presence of bearing spark erosion currents, giving them a reference point to evaluate mitigation measures.

Powertek PEM CWT ULTRA Miniature Current Probe

High-Frequency Rogowski Coil Current Sensor – Ideal for Tight Spaces

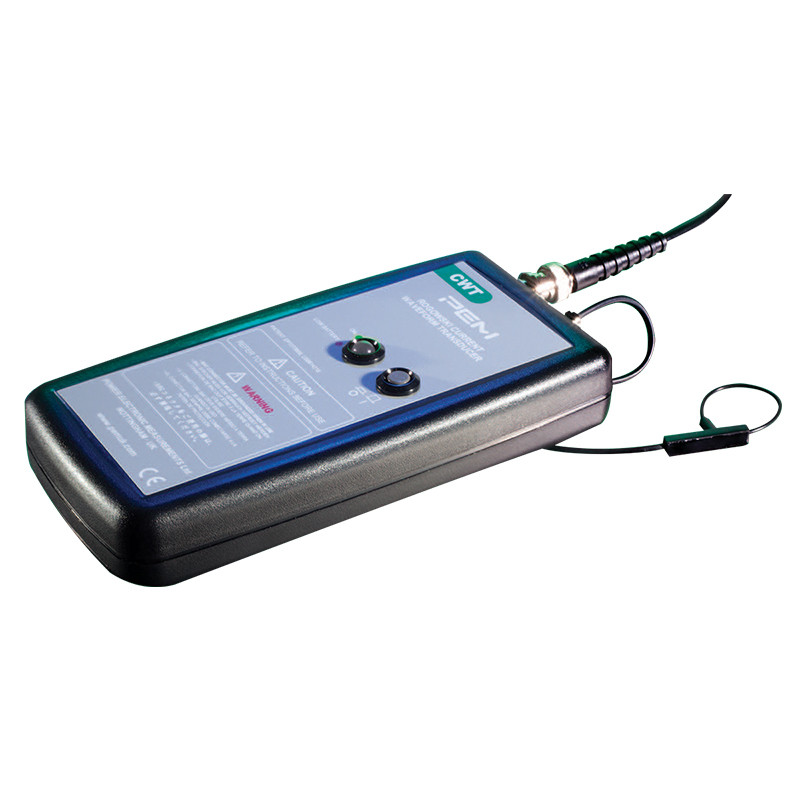

The CWT ULTRA Miniature Current Probes feature an exceptionally thin 1.7mm cross-section Rogowski Coil sensor, making them perfect for fitting between the legs of a TO-220 semiconductor switching device. Capable of measuring currents up to 30MHz, these probes are designed for monitoring steady-state currents, switching transients, and pulsed currents ranging from 300mA to 12000Apk in power electronics. The CWT ULTRA Miniature probe is a flexible, clip-around current probe based on the Rogowski principle, ensuring high-bandwidth measurement and accurate current-to-voltage conversion. It is compatible with oscilloscopes, transient recorders, data loggers, power meters, and analyzers.

Each probe is equipped with an 80mm clip-around coil, ensuring easy current monitoring even in spaces where access is limited.

Rogowski Coil Current Sensor – Miniature High Frequency Probe

The CWT Miniature current probes utilize a thin Rogowski Coil sensor (typical cross section 3.5mm) designed to fit into confined spaces—often between the legs of semiconductor power switching devices. With high-frequency bandwidths up to 20MHz, these probes are ideal for measuring switching transients, pulsed currents, and high-frequency AC currents, starting at 300mA up to 300kA. The CWT Mini Rogowski probe is a flexible, clip-on current probe based on the Rogowski principle, offering high-bandwidth measurement and accurate conversion of current to voltage. It is designed for use with oscilloscopes, data loggers, power meters, and analyzers.

Available with 100mm or 200mm length clip-around coils, these current probes allow easy monitoring even where access is limited.

The CWT Mini 50 High Frequency Current Probe series is designed for high-performance current measurement in power electronics and switching devices, featuring a Rogowski Coil sensor that is slim enough (3.5mm cross-section) to fit in very confined spaces, such as between the legs of semiconductor devices. This series offers high-frequency bandwidths up to 50MHz, making it ideal for measuring switching transients or pulsed currents ranging from 300mA to 30kA. The flexible clip-around coil ensures easy current monitoring without system disruption and is compatible with oscilloscopes, data loggers, power meters, and power analyzers.

The CWTMiniHF – High Frequency Current Probe is a state-of-the-art, miniature Rogowski coil-based high-frequency current sensor designed for measuring switching transients or pulsed currents in power electronic devices. With a cross-sectional diameter of just 4.5mm, the flexible clip-around coil can be easily installed in confined spaces, making it ideal for applications such as measuring currents between semiconductor power switching devices. The CWTMiniHF offers a high-frequency bandwidth of up to 30MHz and can measure currents ranging from 300mA up to 300kA, with peak di/dt capabilities of up to 100kA/µs.

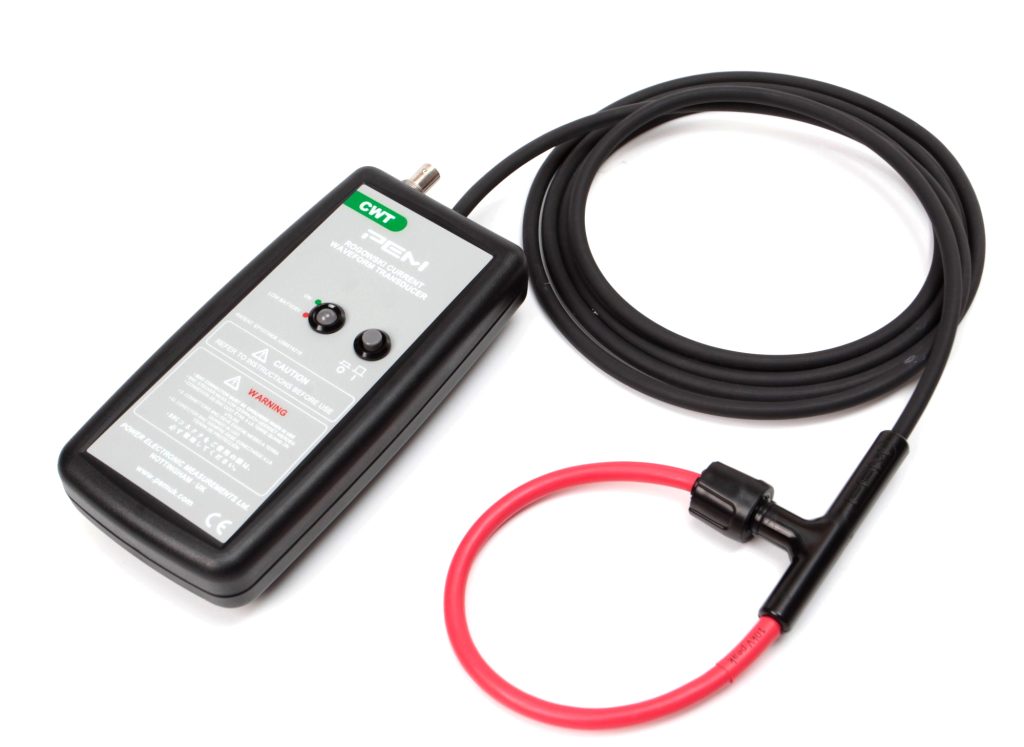

The PEM CWT Current Sensors are high-performance, clip-on, flexible Rogowski Coil-based wideband current probes designed for current measurement in various power electronic applications. These current sensors offer exceptional bandwidth and dynamic range, making them ideal for measuring both small and large currents across a range from 0.1A up to 1200kA, with frequencies ranging from 0.01Hz to 20MHz. Compatible with oscilloscopes, data loggers, transient recorders, and power analyzers, the CWT series delivers precise, reliable measurements without the need to break circuits during installation.

The CWT LF Current Probes are flexible, rugged current sensors designed using Rogowski Coil technology. They offer wide bandwidth measurement and faithful AC current-to-voltage conversion for use with oscilloscopes, data loggers, power analyzers, and power meters. These clip-on probes are ideal for power electronics applications, offering current sensing from 0.001Hz to 6.5MHz with accuracy and ease of use.
