Key Features:
Non-intrusive measurement: Observe and measure currents directly from PCB tracks, cables, and component leads.
Wide dynamic range: Measures currents from 10mA to 20A peak-to-peak.
High bandwidth: Capable of measuring signals from DC to 5MHz.
Low noise: Equivalent to <6mA RMS at full bandwidth.
Minimal circuit disturbance: Low insertion impedance and stray capacitance.
High accuracy: Suitable for connection to any oscilloscope.
Safety rated: 300V Cat II (600V Cat I), compliant with EN61010-1 and EN61010-031.
Technical Specifications:
| Parameter | Details |
| Output Signal | Maximum output: 10V |
| Oscilloscope Input | Suitable for 1MΩ input impedance with < 30pF |
| Max. Circuit Voltage | 300V Cat II (AC line circuits), 600V Cat I (inside equipment) |
| Max. Tip Temperature | 150°C |
| Bandwidth | DC to 5MHz (Full) |
| Accuracy | ±5% (with Toroid), ±1% (with PCB tracks) |
| Safety | Complies with EN61010-1 and EN61010-031 |
| Power Supply | 5.2V (up to 5 watts) via AC line adaptor (included) |
| Cable Length | 2m from probe tip to output BNC |
| Dimensions | 155mm x 38mm x 28mm (max), 2.8mm x 1.8mm at the tip |
| Output Socket | BNC socket, supplied with 0.5m BNC-BNC cable |
| Magnetic Field Measurement | 250uT per Volt |
| Field Accuracy | ±3% |
| Maximum Magnetic Field | ±2.5mT (2000A/m) |
Modes of Operation:
PCB Track Current Measurement:
Non-contact, non-intrusive measurement for PCB tracks.
Ideal for analyzing currents in high-density circuit boards without requiring disconnection.
Wide dynamic range with low noise performance, making it suitable for various applications.
DC to 5MHz bandwidth, with risetime < 70ns.
Closed-Loop Current Measurement (Wire Mode):
Converts into a conventional “closed magnetic circuit” current probe using the included clip-on toroid assembly.
Measures current in a wire without needing disconnection.
Wide dynamic range, enhanced accuracy, and high rejection of unwanted fields.
1 volt per amp output in Wire Mode.
Electromagnetic Field Measurement (Field Mode):
Measures magnetic fields with 250uT per Volt scaling.
Accurate determination of field sources, enabling engineers to pinpoint the source of electromagnetic interference (EMI).
Field measurement in Teslas or amps per meter.
Additional Features:
Overload Indicator: An LED indicator will light up if the output voltage exceeds ±10V or large magnetic fields cause system saturation.
Calibrator for PCB Measurement: The built-in calibrator allows for fine-tuning sensitivity to match various PCB track widths, ensuring accurate measurements.
Switchable Filters: Bandwidth control for DC to 5MHz, 500kHz, and 2Hz, giving flexibility based on the application and signal type.
Applications:
Current Measurement in PCB Tracks: Non-contact probing of high-density boards, component leads, and fine tracks.
Closed-Loop Current Measurement: With the clip-on toroid, the probe works like a traditional current clamp for measuring currents in wires.
Electromagnetic Field Detection: Measure and analyze magnetic fields generated by components and systems.
VSD (Variable Speed Drive) Testing: Ideal for measuring bearing spark erosion currents and common-mode currents in high-frequency systems.

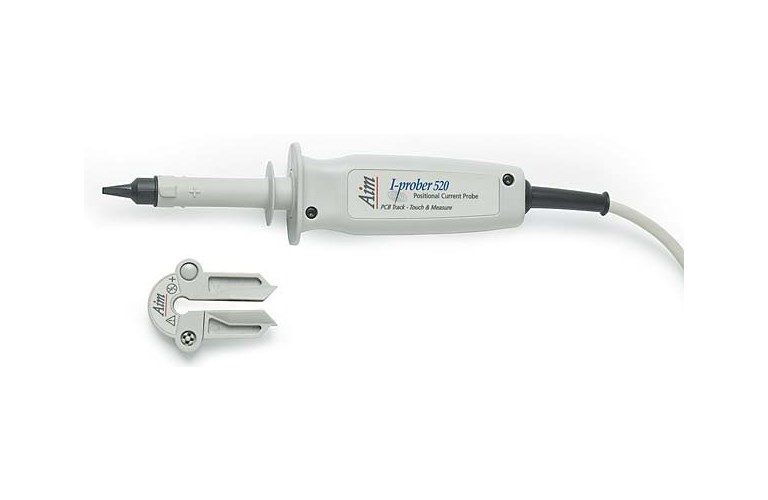

The I-Prober 520 includes the probe, signal conditioner, clip-on toroid, calibrator, power adapter, and BNC-BNC cable.
