Active Loop Antennas
Active Loop Antennas / Magnetic Field Probes FMZB 1512 – Active Handheld Receive Loop Antenna The FMZB 1512 is an active, shielded handheld loop antenna with nearly con- stant antenna factor over the entire frequency range. It can be used for testing according to CISPR, MIL, FCC, EN, ISO, ANSI, ETSI and many other standards. […]
Hybrid Antennas
Biconic Logarithmic Periodic Antennas (Hybrid) VULB 9162 – TRILOG Broadband Antenna Linear polarized Logarithmic Periodic Broadband Antenna combined with a 4:1 Broadband Dipole (Aluminium tubing) for Receive and Transmit Applications. DatasheetRadiation PatternShort Measuring DistanceFieldstrength Frequency Range, nominal: 30 MHz – 7 GHz Usable Frequency Range: 25 MHz – 8 GHz Polarisation: linear Pattern Type: directional […]
Dual Polarised LPDA
XSLP 9142 Dual Polarized UHF-SHF Log.-Per. Antenna800 MHz – 3(5) GHz50 W DatasheetRadiation Pattern XSLP 9143 Dual Polarized UHF-SHF Log.-Per. Antenna300 MHz – 3(5.5) GHz50 W DatasheetRadiation Pattern
Stacked LPDA
Stacked Logarithmic Periodic Broadband Antennas STLP 9128 C – Stacked Log Periodic Antenna The stacked Logarithmic Periodic Dipole Antenna consists of two ordinary Log.-Per. structures. The excellent characteristics (flat gain over a large bandwidth, low SWR) of the ordinary Log.-Per. designs could be maintained using the stacked LP design. The stacked design helps to focus […]
Hybrid LPDA

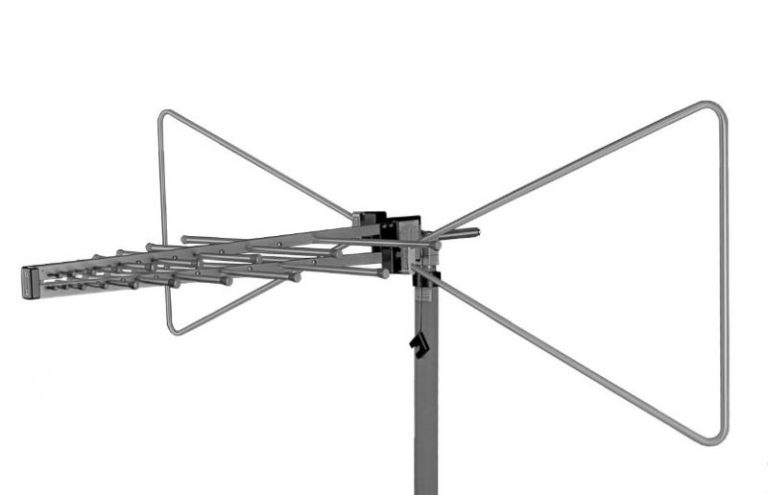

Biconic Logarithmic Periodic Antennas (Hybrid) VULB 9162 – TRILOG Broadband Antenna Linear polarized Logarithmic Periodic Broadband Antenna combined with a 4:1 Broadband Dipole (Aluminium tubing) for Receive and Transmit Applications. DatasheetRadiation PatternShort Measuring DistanceFieldstrength Frequency Range, nominal: 30 MHz – 7 GHz Usable Frequency Range: 25 MHz – 8 GHz Polarisation: linear Pattern Type: directional […]
Standard LPDA

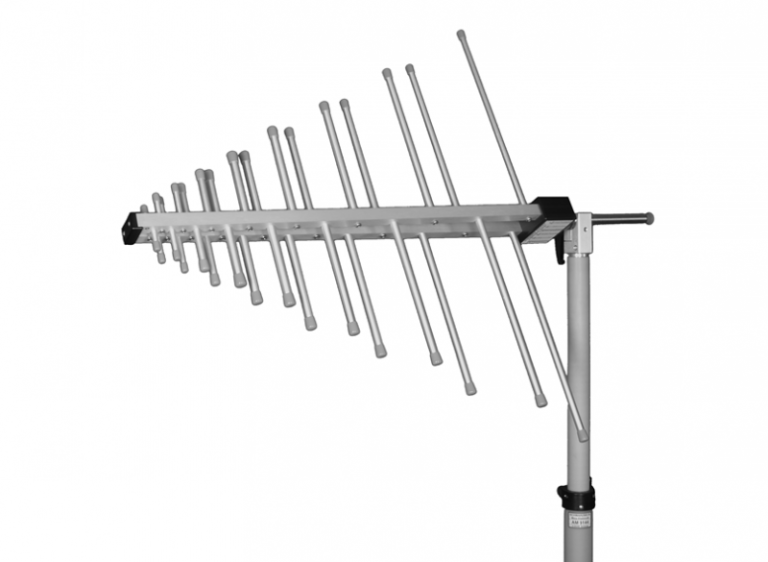

UHALP 9108 A – Log Periodic Antenna DatasheetDimensionsRadiation PatternShort Measuring DistanceVSWRFieldstrength Frequency Range: 250 – 2400 MHz Polarisation: linear Pattern Type: directional Material: Aluminium Max Power: 1 kW Connector: Type N female Impedance: 50 Ω nominal Length: 0.69 m Width: 0.51 m Weight: 1.35 kg Mounting: 22 mm diameter tube VULP 9118 A – Log Periodic […]
TEM Horn Antennas
TEMH 6000 – Broadband TEM Horn Antenna Linear polarized Broadband TEM Horn Antenna (Aluminium) for receive and transmit applications, especially for generating radiated fields in close proximity immunity tests and UWB (ultra wideband) measurements. A typical application is the IEC 61000-4-39 standard. DatasheetSpacer 100 Nominal Frequency Range: 380 MHz – 6 GHz Usable Frequency Range: […]
Dual Polarized Horn Antennas

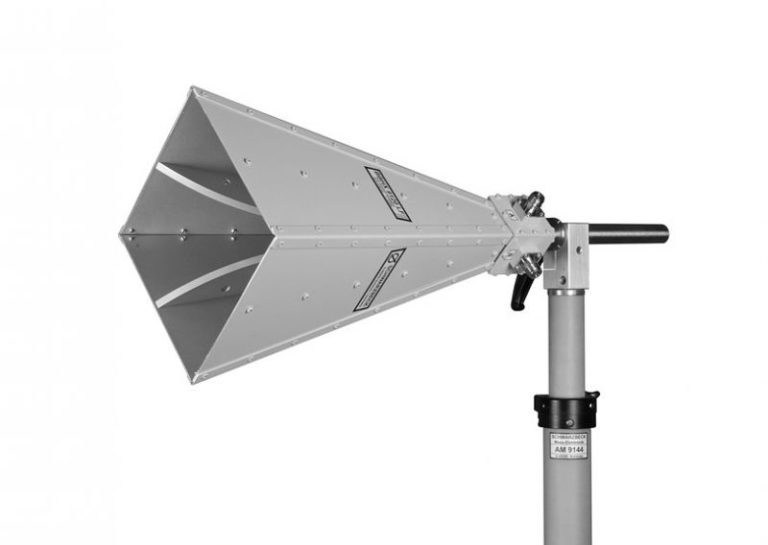

CTIA 0710 Open Boundary Quad-Ridged Horn AntennaDual polarized Broadband Horn AntennaFrequency range: 0.7 – 10 GHzConnector: SMA-femaleSize: 235 x 200 x 235 mmWeight: 0.84 Kg DatasheetRadiation Pattern BBHX 9120 E Dual polarized Broad-Band Horn Antenna0.4 – 10 GHzN-female DatasheetRadiation Pattern BBHX 9120 LF Dual polarized Broad-Band Horn Antenna(0.8) 1 – 8 (10.5) GHzN-female DatasheetRadiation Pattern
Standard Gain Horn Antennas
BBHA 9170 – Broadband Horn Antenna Linear polarized Broadband Horn Antenna (Brass with Plastic mounting body) for Receive and Transmit Applications. DatasheetRadiation Pattern Nominal Frequency Range: 15 – 26.5 GHz Usable Frequency Range: 14 – 40 GHz Gain: 15-20 dBi Antenna Factor: 38-45 dB/m Nominal Impedance: 50 Ω Max. Input Power: 10 W (cont.) 25 […]
Double-Ridged Horn Antennas

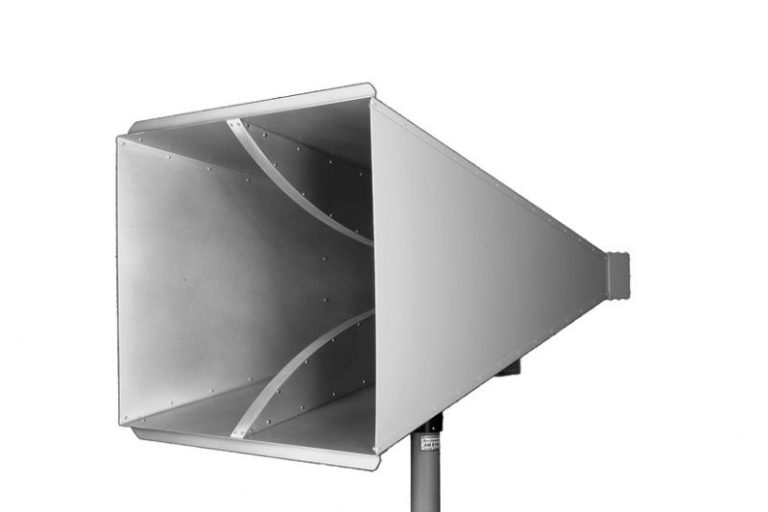

Overview Double Ridged Waveguide Horn Antennas The broadband horn antennas BBHA 9120 offer a very low SWR in their nominal frequency range and a very broad bandwidth. The gain increases with frequency up to approx. 21 dBi, depending on the horn’s size and shape. The increasing gain with frequency helps to compensate cable losses. The […]
