PMM NARDA Antennas
Narda’s antenna systems provide a single, economical solution for all antennas required for emissions and radiated immunity applications. They are compatible with any receiver or spectrum analyzer, ensuring flexibility and efficiency in EMC testing.
Antenna Masts and Tripods

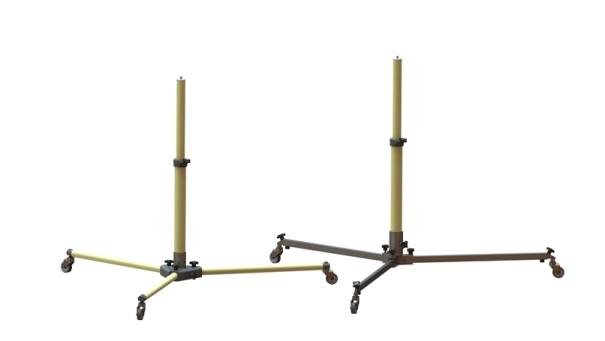

Modular Antenna Mast – AM 9144 The double telescopic antenna mast / tripod is continuously height-adjustable. The mast rods are made of glass fibre to avoid unwanted reflexions. The modular design makes it possible to use different telescope parts and it can be mounted on a mast foot made of stainless steel or one made […]
Biconical Antennas

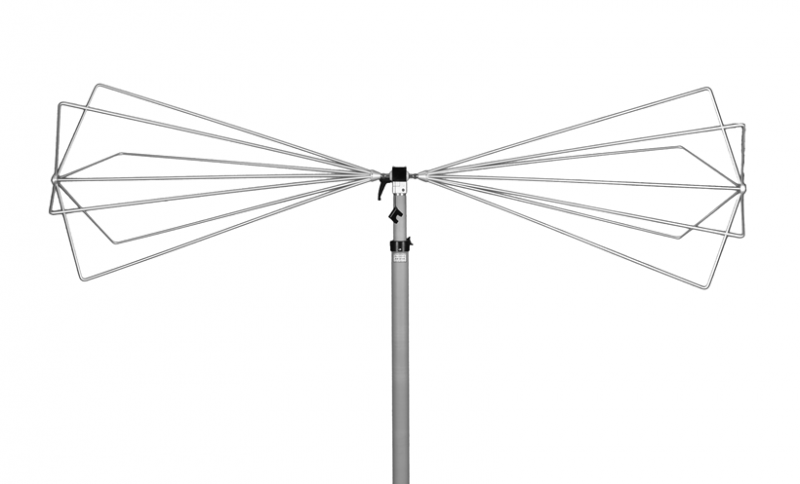

Biconical Antennas have dipole like characteristics (e.g. circular directional pattern in the H-plane,”8″-shaped in the E-plane, fixed phase center, comparable gain), with an enormous wide bandwidth achieved by the double cone elements. One of the earliest and worldwide most popular biconical antenna designs is the BBA 9106 with balun VHA 9103 B. During the last years a […]
Automotive Antennas
419 NJ Flat, broadband antenna elements with termination resistors and heatsinks for the NMHC 4MM Balun for efficient immunity testing at close distances in the frequency range below 220 MHz. Required Balun: NMHC 4MM Connector: N female Frequency Range: 20 MHz … 220 MHz Nominal Impedance: 50 Ω Continuous Power: 30 W Max. Power (short time, […]
Helical Antennas

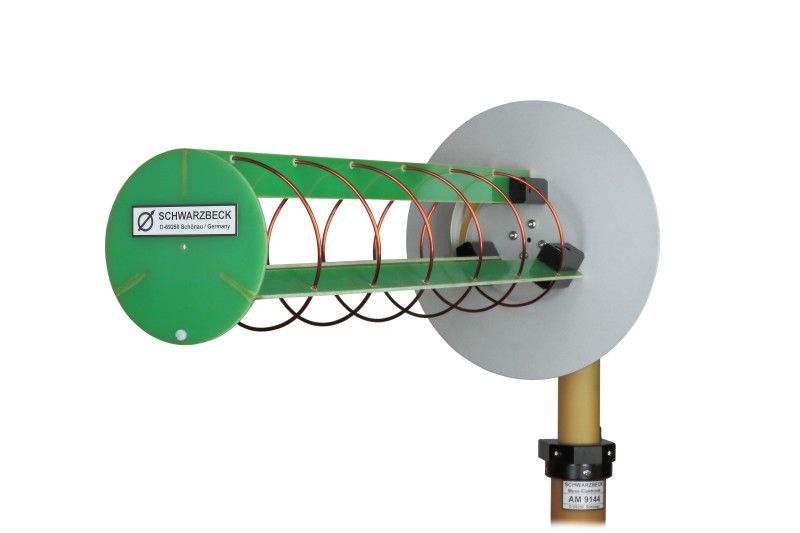

HLX 0810-LHCP Helical antenna750 – 1050 MHzleft hand circular polarisation (LHCP)gain: 11 dBic22 mm tubeN-jack DatasheetRadiation Pattern HLX 0810-RHCP Helical antenna750 – 1050 MHzright hand circular polarisation (RHCP)gain: 11 dBic22 mm tubeN-jack DatasheetRadiation Pattern CLSA 0110 – RHCP Conical Logarithmic Spiral AntennaThe CLSA 0110 offers circular polarisation over approx. one decade up to microwave frequencies.Frequency […]
Antenna Impedance Converter

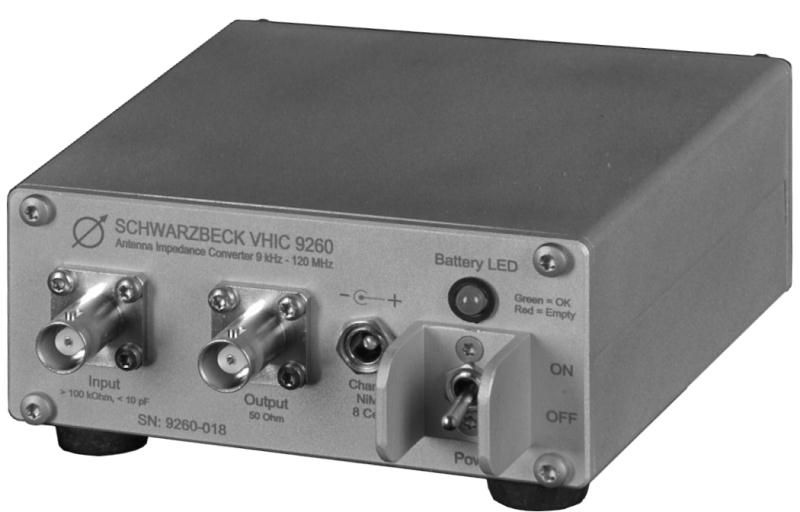

VHIC 9260 Antenna Impedance converter acc. CISPR 25 9 kHz – 30 (120) MHz.Option ACS 110: Charger ACS 110 for VHIC 9260 Datasheet CA 9260 The CA 9260 artificial antenna network (AAN) described in CISPR 25 Annex B, 150 kHz to 6.2 MHz, is used to measure the S21 of the Impedance converter VHIC 9260. […]
Mast Adapters

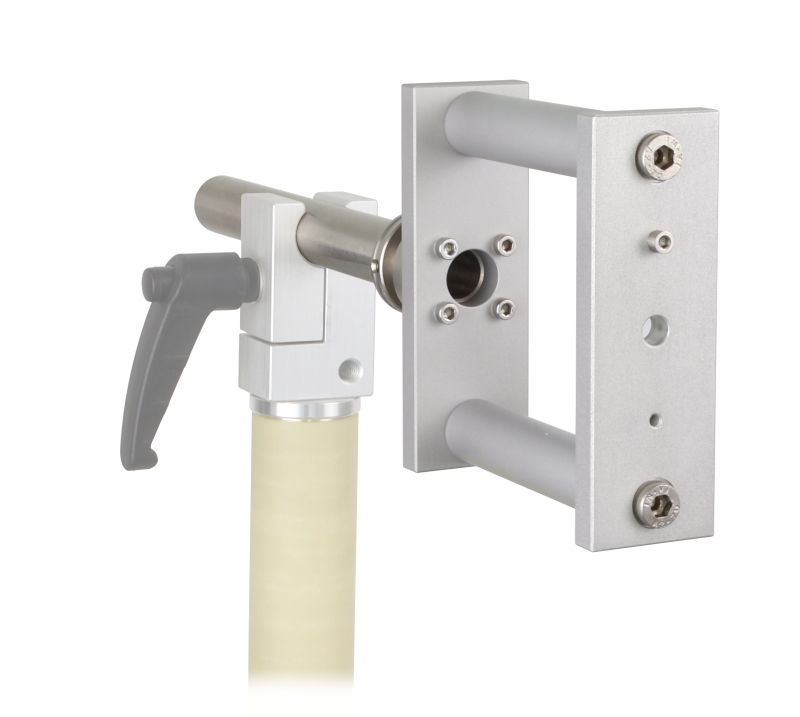

AA 9202 Mast Adapter for Antenna Mast System AM 9144 with22 mm hole for most Antenna models.3/8″ and 1/4″ camera threadspolarisation continuously adjustable Datasheet PDG 9211 – Polarisation swivel fixture The polarisation swivel fixture PDG 9211 allows to change the polarisation of larger horn antennas by a single person easily. With the four locking points […]
Dipoles

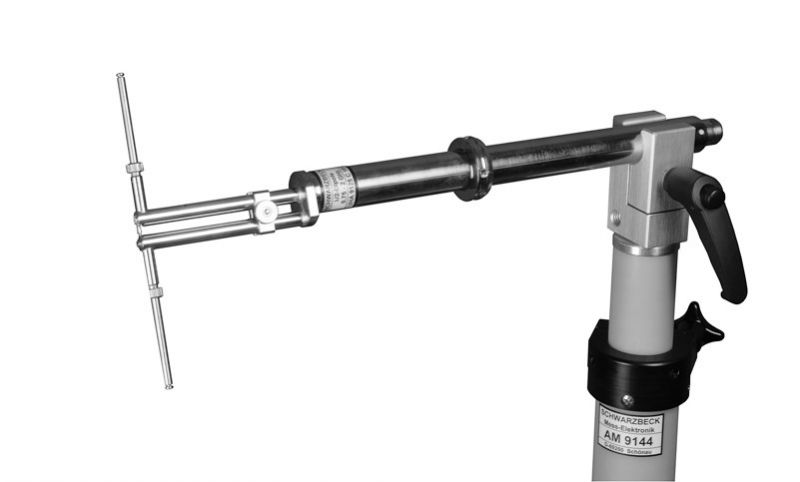

Tuned half-wave dipoles have been among the most important antennas from the beginning of rf-technique. The characteristics of half-wave dipoles have been calculable very early using the Maxwell and Hertz equations. Therefore the half wave dipole became a reference antenna. The ideal (lossless) half-wave dipole has an isotropic gain of 2.15 dBi and an impedance […]
Rod Antennas

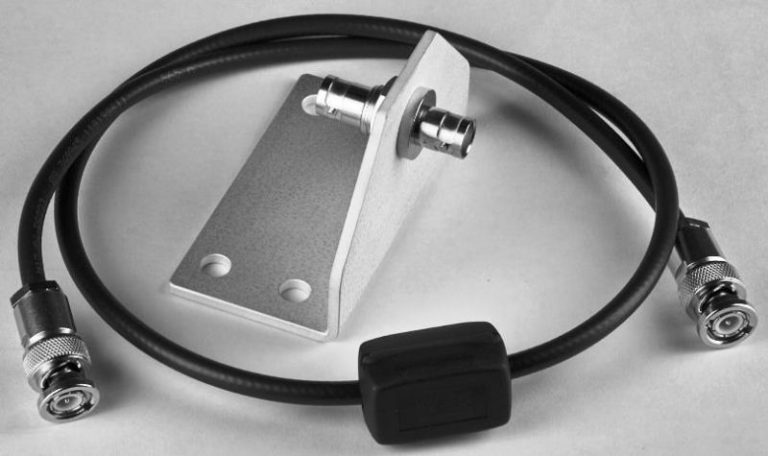

VAMP 9243 Vertikal active rod antenna9 kHz – 30 MHzBNCreduced noise floorwith mounting nut for AM 9144 and rechargeable battery Datasheet Option:Opt. GP: Aluminium-Groundplane, 0.6 x 0.6 mOpt. ACS 410: Charger ACS 410Opt. VT: 20 dB plug in divider to measure high field strength [Foto]Opt. CA 9243: Calibration Adapter for VAMP9243 Opt. CA 9243Opt. MIL461F […]
Monitoring & Drive Test Antennas
TETRA Dipole Linear polarized half-wave dipole with 1:1 balun and fixed element length for fieldstrength measurements at TETRA (terrestrical trunked radio) networks. Frequency range: 340 – 480 MHzGain: typ. 1.5 dBi Datasheet ILS Dipole Linear polarized half-wave dipole with 1:1 balun and fixed element length for fieldstrength measurements at instrument landing systems (ILS). Frequency range:Localizer: […]
