DC Current Sensors, Transducers, & Probes

DC Current Sensors for Industrial, Automation, Rail Transport, Welders, DCS, and Electric Vehicles Converting DC Current to Isolated Voltage or Current Loop with Optional Interfaces

The CTH DC current sensors offer precise measurement and conversion of DC current into isolated voltage or current loop outputs. These sensors provide instantaneous, accurate reproduction of the measured current, whether AC or DC. They are designed for a variety of applications, including electric vehicles, process control systems, welders, rail transport, DCS, and industrial automation. Available in through-hole or split-core options, the CTH sensors are non-intrusive and easy to install, covering a wide input range from 1A to 40,000Adc. With optional DC offset control to null residual DC currents and wide-range power input options, these sensors can seamlessly integrate into PLC, SCADA, transportation, and telecommunications systems.

Key Features:

Measurement Range: From 1A to 40,000Adc.
Fast Response: Active Hall Effect sensor technology provides a fast response time, supporting frequencies from DC to 150kHz.
Isolated Output: Outputs available in voltage (0-100mV to 0-10V) or current loop (4-20mA).
Non-Intrusive Installation: Through-hole or split-core options for easy installation.
DC Offset Control: Allows nulling of residual DC currents for optimized signal output.
Power Input Flexibility: Wide range of power inputs, including 12V, 24V, 48V, 110V, 230Vac/dc, and more.
NIST/UKAS Traceable Calibration: All models are supplied with a NIST/UKAS traceable calibration certificate.

CTH Sensor Models and Specifications:

CTH Type 1 Through-Hole Core

Hole size: 13.5mm x 10mm
Current ranges: 1A to 100A
Frequency range: DC to 100kHz
Output: 0-10V, 4-20mA
Size: 145mm x 95mm x 38mm

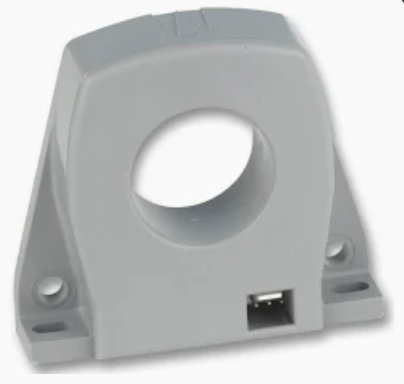

CTH Type 2 Through-Hole Core

Hole size: 24.5mm diameter
Current ranges: 5A to 600A
Frequency range: DC to 150kHz
Output: 0-10V, 4-20mA

CTH Type 3 Split Core for EV

Hole size: 28.45mm diameter
Current ranges: 50A to 5000A
Frequency range: DC to 10kHz
Output: 0-10V, 4-20mA

CTH Type 5 Split Core

Hole size: 21mm diameter
Current ranges: 20A to 400A
Frequency range: DC to 25kHz
Output: 0-10V, 4-20mA

CTH Type 6 Split Core

Hole size: 104mm x 40mm
Current ranges: 200A to 4000A
Frequency range: DC to 10kHz
Output: 0-10V, 4-20mA

CTH Type 7 Split Core

Hole size: 163mm x 50mm
Current ranges: 500A to 4000A
Frequency range: DC to 10kHz
Output: 0-10V, 4-20mA

CTH Type 8 Split Core

Hole size: 50mm diameter
Current ranges: 100A to 3000A
Frequency range: DC to 400Hz
Output: 0-10V, 4-20mA

CTH Type 9z Split Core

Hole size: 115mm x 33mm
Current ranges: 200A to 3000A
Frequency range: DC to 400Hz
Output: 0-10V, 4-20mA

CTH Type 8EE Split Core

Hole size: 108mm diameter
Current ranges: 200A to 5000A
Frequency range: DC to 400Hz
Output: 0-10V, 4-20mA

CTH Type 10 & 11 Split Core

Type 10 Hole size: 140mm x 203mm
Type 11 Hole size: 330mm x 330mm
Current ranges: 5000A to 40,000A
Frequency range: DC to 1kHz
Output: 0-10V, 4-20mA

CTH Power Input Options:

12Vdc / 24Vdc / 48Vdc / 110Vdc / 230Vac/dc
Surge protection and polarity protection for all input types.

Applications:

Electric Vehicles: Ideal for charging and monitoring applications in EV systems.
Process Control: Integrates seamlessly with PLC, SCADA, and DCS systems.
Rail Transport: Ensures safe and reliable monitoring of traction and auxiliary systems.
Welding Machines: Accurate current measurement for welding control and monitoring.
Industrial Automation: Monitors DC currents in automation systems and drives.

Output and Interface Options:

Standard outputs: 0-10V, 4-20mA, 0-5V, 0-100mV
Custom interfaces available: USB, RS485, and WiFi options for real-time data logging and remote monitoring.

Customization Options:

Non-standard current ranges: Available for custom applications.
Extended temperature ranges: -40°C to +85°C for extreme environments.
Noise rejection: Customizable frequency filters to enhance performance in noisy environments.

DCA-Sensor-CTH Datasheet
CTH-Type-4-8-9z-pg1 Datasheet
CTLC-1 Datasheet
CTH-Type-G-10-11-ptk-pg1 Datasheet
CTLP Datasheet
CTLC-1 Datasheet
CTU-XXXXZ Datasheet
