Testing and Measurement Equipment

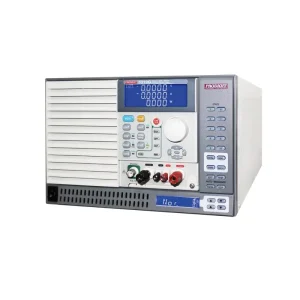

The 3310G Series DC Electronic Load offers a powerful and versatile solution for testing power sources, including batteries, chargers, power supplies, and various protection devices. Designed for R&D, production, and quality control, this electronic load is equipped with advanced features for accurate and flexible testing. With a robust power rating of 800W, it is ideal for simulating real-world operating conditions across different applications.

The 3310G Series DC Electronic Loads from Prodigit Electronics are designed for testing power sources such as SMPS, batteries, and solar panels. These loads feature flexible control options, making them suitable for R&D, quality control, and production environments. The series includes various models ranging from 75W to 800W, supporting multiple operation modes and testing functionalities, including BMS, fuse, and MPPT tests.

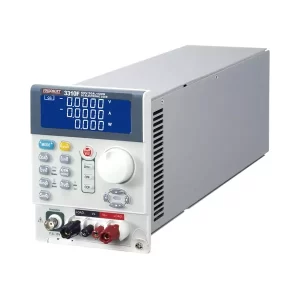

The 3310F Series DC Electronic Loads are designed to provide versatile and reliable testing solutions for power supplies, batteries, and other DC power sources. These electronic loads offer precise control, fast response times, and multiple features that make them suitable for various applications in R&D labs, production lines, and quality assurance environments.

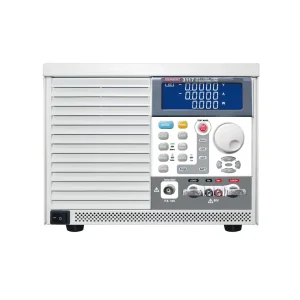

The 3110 Series DC Electronic Load is designed for testing a variety of power sources, including SMPS transient responses, battery chargers, and more. Each model offers flexible operation modes such as Constant Current (CC), Constant Resistance (CR), Constant Voltage (CV), and Constant Power (CP), making it ideal for use in research and development, production testing, and automated testing environments. The load can operate through RS232 and USB interfaces for remote control and monitoring.

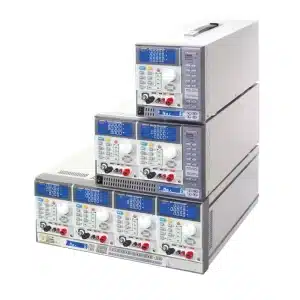

The 3300 Series Mainframes provide flexible, high-performance solutions for automated testing environments. These multi-channel mainframes are designed to accommodate various load modules, offering a scalable and adaptable solution for different applications. With features like built-in store/recall functions, remote control options, and multiple interface types, the 3300 Series is ideal for R&D, manufacturing, and quality assurance testing.

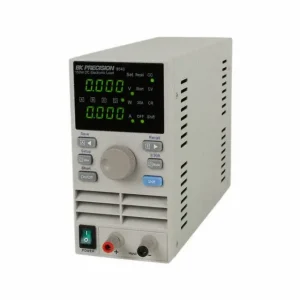

The 8540 DC electronic load is a compact and cost-effective instrument designed for both bench testing and production environments. Despite its small size, it delivers reliable performance, capable of continuously testing 5 volt power supplies up to 30 amps.

This versatile electronic load operates in Constant Current (CC), Constant Voltage (CV), and Constant Resistance (CR) modes, providing flexibility for testing a variety of DC power sources. The real-time measurement and display of voltage, current, resistance, or power values make it an excellent choice for comprehensive testing.

8500B Series Programmable DC Electronic Loads

The 8500B Series programmable DC electronic loads enhance performance across the board while ensuring reliability and affordability. This series maintains compatibility with both SCPI and legacy protocols, making it versatile for various applications.

Designed for rigorous testing and evaluation, these electronic loads are suitable for a range of devices, including DC power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays. With a transient mode speed of up to 10 kHz, the 8500B Series meets the demands of modern power electronics testing.

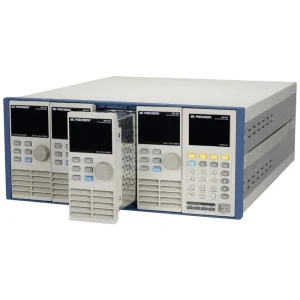

MDL4U Series Modular Programmable Electronic Load System

The MDL4U Series is a versatile multi-channel modular programmable electronic load system designed for testing a wide range of power sources, including multi-output DC power supplies, batteries, fuel cells, and photovoltaic arrays. With seven different modules available, users can choose from programmable DC loads ranging from 200 W to 600 W, providing flexibility for various testing applications.

The mainframe features four slots that can be configured with any combination of modules, allowing for a total power capacity of up to 2400 W, or up to 4800 W with an extension. The high-performance electronic load modules utilize digital signal processing (DSP) technology to simulate non-linear loads and realistic loading behavior in four operating modes: constant current (CC), constant voltage (CV), constant resistance (CR), and constant power (CW).

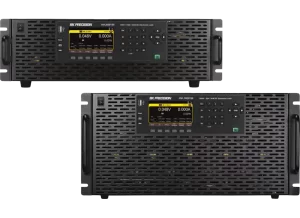

The HVL Series DC Electronic Loads are designed for high-voltage and high-power testing applications, offering a wide operating voltage range up to 1000 V and high power density of up to 6 kW in a 5U form factor. These loads are ideal for evaluating DC-DC converters, batteries, battery chargers, photovoltaic arrays, and other high-power DC sources. The HVL Series supports continuous, pulse, and toggle transient operations, with transient speeds up to 10 kHz in CC mode. For scalability, up to 10 identical units can be combined in parallel to achieve total sink capabilities of up to 60 kW.

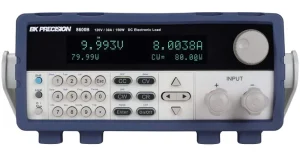

The 8600B Series programmable DC electronic loads offer high-performance testing capabilities in a compact benchtop form factor. These loads are ideal for testing and evaluating a variety of DC sources, including DC power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays. With transient operation speeds up to 25 kHz and high 16-bit resolution, the 8600/B Series delivers precise measurements and flexible operational modes.
