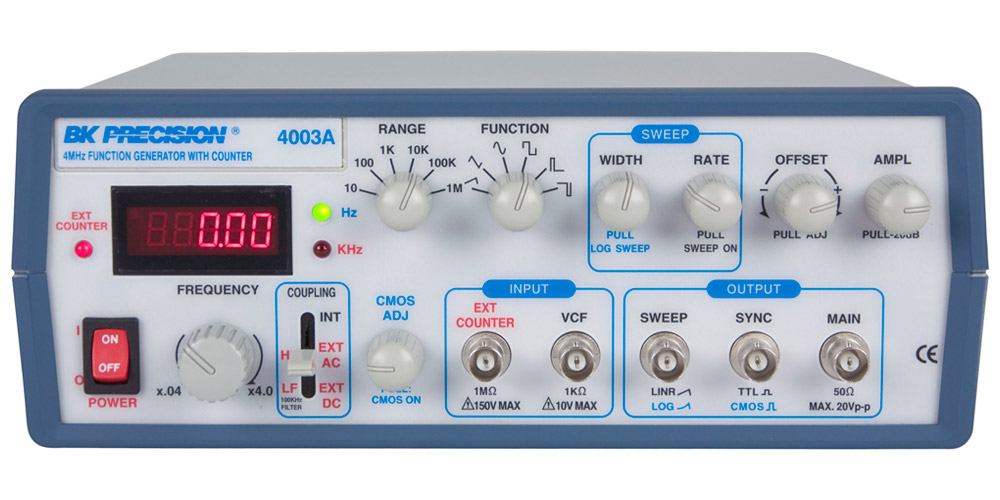

4001A and 4003A – 4 MHz Sweep Function Generators
The B&K Precision 4001A and 4003A are versatile 4 MHz sweep function generators designed for a wide range of signal generation applications. Both models can generate sine, triangle, and square waveforms up to 4 MHz, as well as ramp and ±pulse waveforms up to 3.5 MHz. These function generators are ideal for testing and development in laboratories, engineering, and educational settings.
4005DDS – 5 MHz DDS Function Generator
4005DDS is a highly versatile 5 MHz Direct Digital Synthesis (DDS) function generator designed to produce precise waveforms for a wide range of testing applications. With a frequency range of 1 Hz to 5 MHz, this instrument is capable of generating sine, square, and triangle waveforms with high accuracy. The 4-digit LED display ensures easy frequency readout, while the variable output voltage and adjustable DC offset provide flexibility for circuit testing.

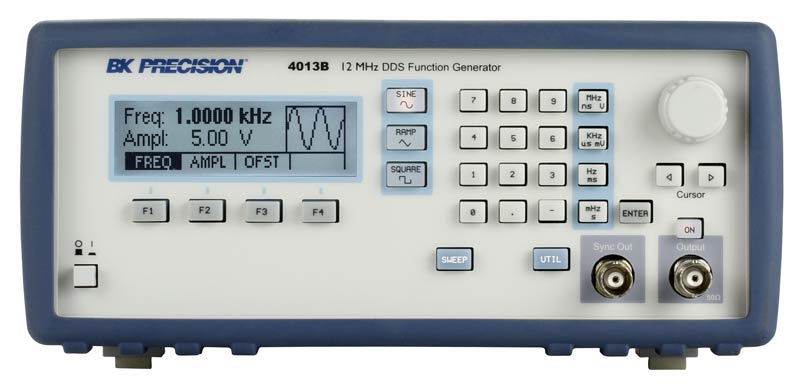

4007B and 4013B DDS Sweep Function Generators
The 4007B and 4013B sweep function generators are versatile instruments designed with Direct Digital Synthesis (DDS) technology, offering high signal stability and precision. These function generators are ideal for a wide range of applications, providing reliable and accurate waveform generation capabilities. Both models support sine, square, and triangle/ramp waveforms, making them suitable for testing, troubleshooting, and circuit design tasks.

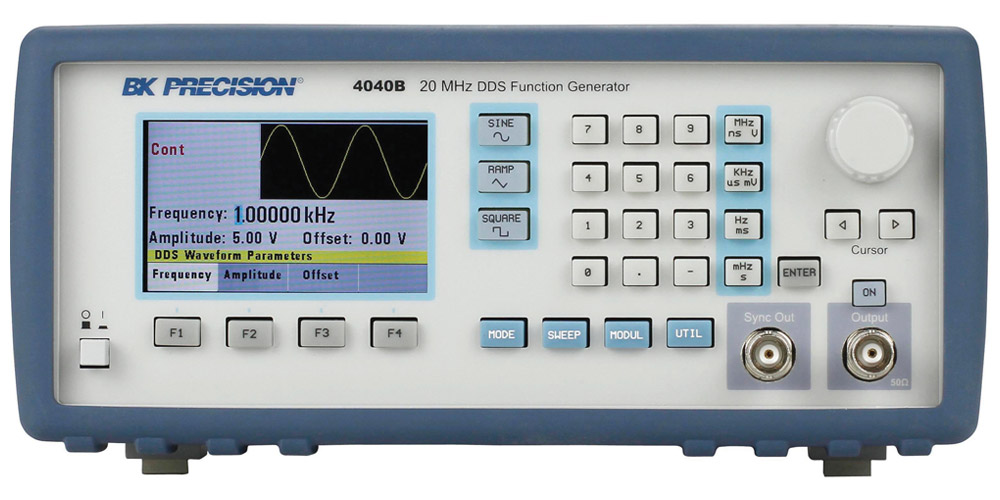

4014B and 4040B DDS Sweep Function Generators
The 4014B and 4040B sweep function generators are versatile, high-precision instruments designed for a wide range of waveform generation applications. They combine Direct Digital Synthesis (DDS) technology with a low-jitter square wave generator, providing excellent signal stability and accuracy. These models are ideal for testing, troubleshooting, and design applications in both educational and professional environments.
4010A Series Function Generators
The 4010A Series Function Generators offer versatile waveform generation capabilities for a wide range of applications. These function generators are designed to provide stable, accurate, and high-quality signal outputs for testing and troubleshooting in laboratories, research facilities, and educational settings.
Each model in the series supports multiple waveform types, variable frequency control, and built-in features that enhance their usability for testing electronic circuits, validating designs, and conducting signal analysis.

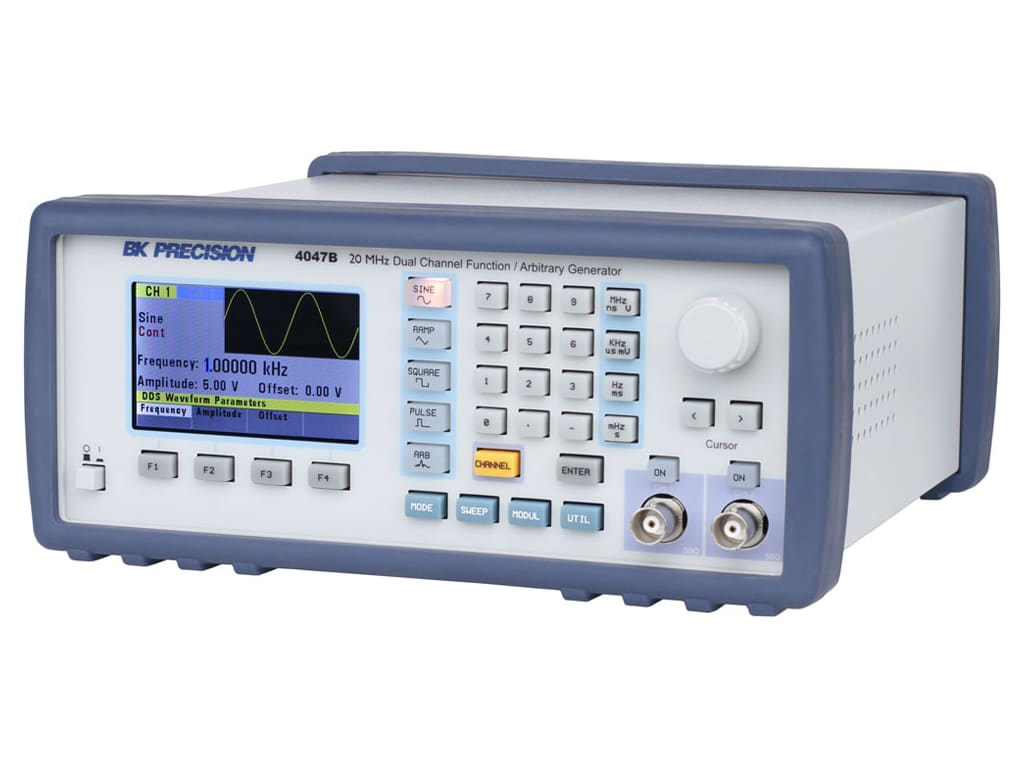

4047B Dual Channel Function/Arbitrary Waveform Generator
The 4047B Dual Channel Function/Arbitrary Waveform Generator is designed to generate stable and precise waveforms, providing flexible capabilities for generating sine, square, triangle, pulse, and arbitrary waveforms. With fully independent CH1 and CH2 outputs, this generator offers individual control over each channel, allowing variation from 0 to 10 Vpp into 50 ohms, or up to 20 Vpp into an open circuit.
Equipped with dual-channel operation and a variety of advanced modulation and sweep features, the 4047B supports applications that require precise signal generation, signal conditioning, and testing. The generator provides high-fidelity waveform creation through its dual architecture that combines the benefits of DDS (Direct Digital Synthesis) and true point-by-point arbitrary waveform generation.

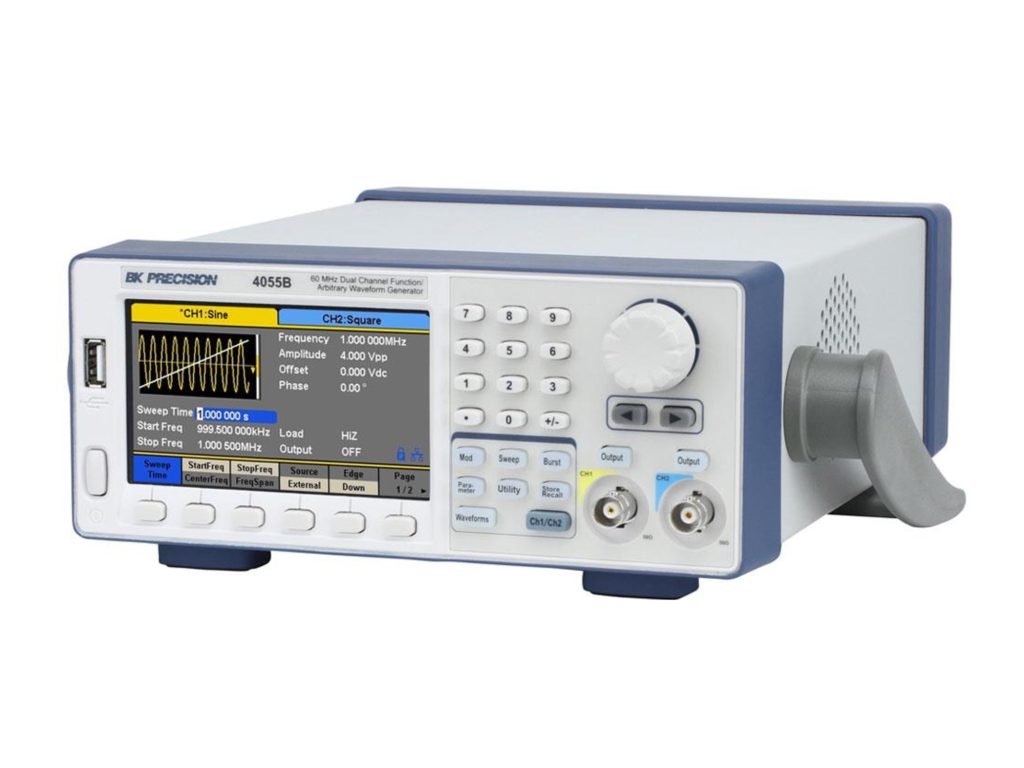

4050B Series Dual Channel Function/Arbitrary Waveform Generators
The 4050B Series Dual Channel Function/Arbitrary Waveform Generators are advanced instruments designed to generate stable and precise sine, square, triangle, pulse, and arbitrary waveforms. With their high performance 14-bit, 150 MSa/s arbitrary waveform generator, these instruments are ideal for a wide range of applications that require versatility and precision in waveform generation.
The 4050B series offers easy operation through an intuitive user interface with a numeric keypad and a large 4.3-inch color display. Each channel can be controlled independently with individual On/Off buttons, and convenient functions such as channel copy, track, and combine allow for flexible signal generation. Synchronization between the two channels is as simple as pushing a button, ensuring phase alignment when needed.
4060B Series Dual Channel Function/Arbitrary Waveform Generators
The 4060B Series Dual Channel Function/Arbitrary Waveform Generators are versatile instruments designed to generate precise and stable sine, square, triangle, pulse, and arbitrary waveforms. With a combination of Direct Digital Synthesis (DDS) and true point-by-point arbitrary waveform generation, this series offers high signal fidelity and low jitter, making it suitable for a wide variety of applications.
Equipped with a 4.3-inch color touch screen and an intuitive user interface with a numeric keypad, these waveform generators provide features such as linear and logarithmic sweep, burst mode, and variable DC offset. The instruments also allow for easy generation of custom arbitrary waveforms using the included application software, or selection from 196 built-in arbitrary waveforms.

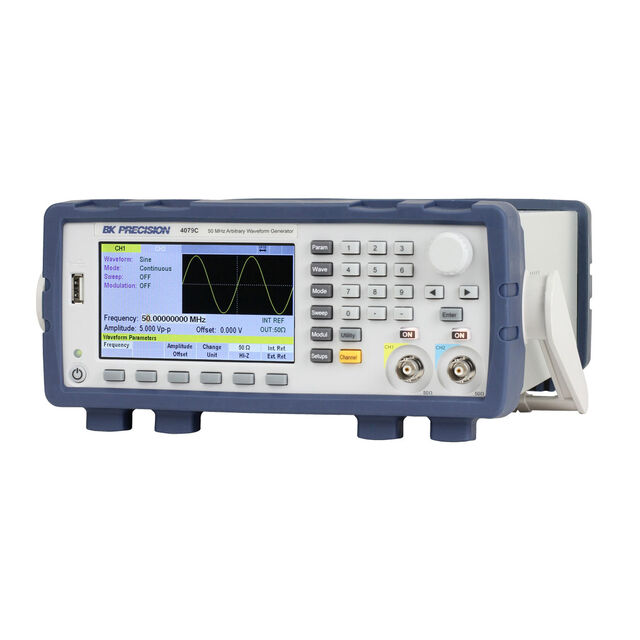

4078C Series Arbitrary/Function Waveform Generators
The 4078C Series Arbitrary/Function Waveform Generators are high-performance, dual-channel instruments designed to generate precise and versatile waveforms. Available in 30 MHz (4078C) and 50 MHz (4079C) models, these generators offer variable output voltages from 0 to 10 Vp-p into 50 ohms, or up to 20 Vp-p into an open circuit. They are ideal for a wide range of applications requiring high-fidelity waveforms, thanks to their 250 MSa/s sampling rate and 16-bit amplitude resolution.
The 4078C series includes features such as AM, FM, PM, BPSK, and FSK modulation, as well as frequency sweep capabilities. Users can easily generate custom waveforms up to 4 million points using the built-in editor. With dual channels and dedicated output control for each, these generators provide maximum flexibility for testing and signal generation.
