Phase Angle Measurement

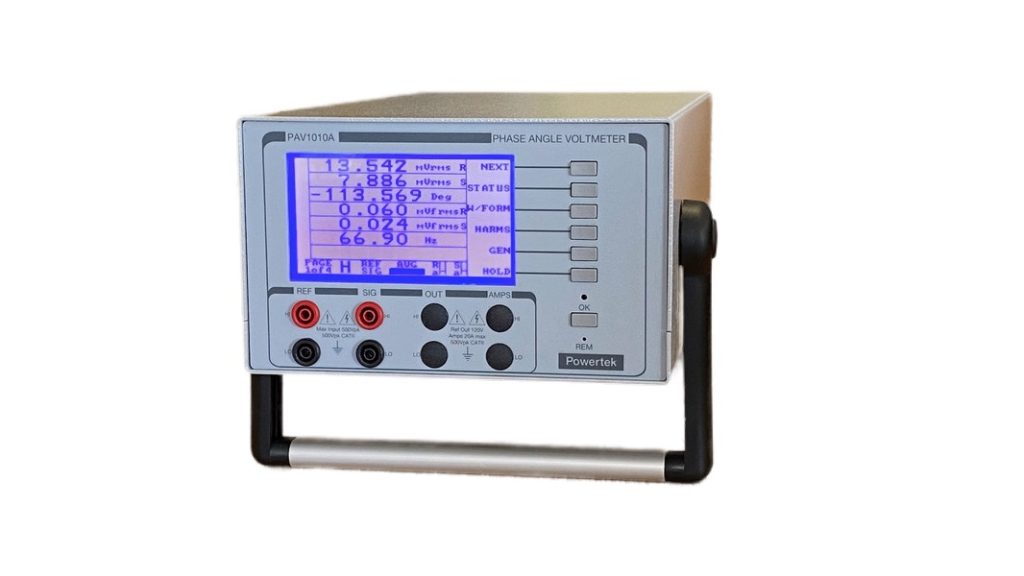

PAV1010A – Precision Phase Angle Voltmeter
The PAV1010A is a high-performance phase angle voltmeter designed for accurate measurement and analysis of electrical parameters such as phase angles, Vrms, fundamentals, harmonics, in-phase, quadrature, and total harmonic distortion (THD). It features a highly sensitive measurement range of 1 mV to 500 Vpk, with 1 uV sensitivity and 0.02° basic accuracy, making it ideal for precision testing applications in Synchro, Resolver, LVDT, and RVDT systems.
