Environmental Testers - Westek Electronics https://www.westek.com.au Sun, 02 Mar 2025 06:14:29 +0000 en-AU hourly 1 https://wordpress.org/?v=6.9.4 https://www.westek.com.au/wp-content/uploads/2024/11/site-icon-150x150.png Environmental Testers - Westek Electronics https://www.westek.com.au 32 32 Thermo-Hygrometers https://www.westek.com.au/thermo-hygrometers/ Wed, 12 Feb 2025 09:23:40 +0000 https://www.westek.com.au/?p=2279 Datalogging Humidity/Temperature Meter with Dual Input

The Model 725 is a state-of-the-art dual-function environmental meter featuring two sensors housed in a remote wand. This design allows the sensors to be placed exactly where readings are needed. The meter simultaneously displays both Relative Humidity (RH) and Temperature on its triple LCD screen, making it an ideal tool for environmental monitoring in various settings. Additionally, the meter has a second K-type thermocouple port, enabling external temperature measurements.

The Model 725 includes data logging capabilities, recording up to 16,300 data points. Users can adjust the logging interval to capture data over a period ranging from 4 hours to 678 days, making it suitable for both short-term and long-term monitoring. The meter features an RS232 output port and comes with interface software and cable for real-time control from a PC or for downloading data for analysis.

The post Thermo-Hygrometers first appeared on Westek Electronics.

]]> Key Features:

Dual Input Sensors: Measures both Relative Humidity and Temperature with a remote wand
Data Logging: Stores up to 16,300 data points with adjustable logging intervals
RS232 Interface: Download data or control the meter in real-time via PC
Triple LCD Display: Simultaneous readings of RH and Temperature
K-Type Thermocouple Port: Additional input for external temperature measurements
Min/Max Function: Capture and display minimum and maximum readings
Auto Power Off: Saves battery life when not in use
Real Time Clock: Time-stamped data for precise monitoring

AK 720 – Testlink Software with RS-232 Cable

The AK 720 is an interface kit for the Model 725 and similar meters. It includes software and an RS-232 cable to connect the meter to a PC, enabling users to download logged data or control the meter in real-time.

BE 9 – Power Adapter (9V DC 100mA)

The BE 9 is a 9V DC power adapter for B&K Precision meters. It is UL & cUL listed for safety and provides a reliable power source for prolonged usage.

Specifications:
Voltage: 9V DC, 100mA
Barrel Jack Dimensions: 11mm long, 3mm diameter, 1mm internal diameter

TP 29 – Thermocouple Bead Probe (-50 to 200°C)

The TP 29 is a replacement K-type thermocouple probe designed for fast and accurate temperature measurements in air, gas, or general-purpose applications. It is PTFE insulated, ensuring durability and resistance to high temperatures.

Specifications:
Temperature Range: -50°C to 200°C
PTFE Insulation: For added durability and heat resistance
Exposed Junction: For fast response time in air and gas measurements

The Model 725 along with the AK 720, BE 9, and TP 29 accessories form a comprehensive environmental monitoring solution, ideal for applications requiring precise and reliable humidity and temperature measurements, data logging, and real-time data analysis.

Model 725 Datasheet

The post Thermo-Hygrometers first appeared on Westek Electronics.

]]> Sound Level Meters https://www.westek.com.au/sound-level-meters/ Wed, 12 Feb 2025 09:07:34 +0000 https://www.westek.com.au/?p=2270 B&K Precision Sound Level Meters and Acoustic Calibrator

The post Sound Level Meters first appeared on Westek Electronics.

]]>

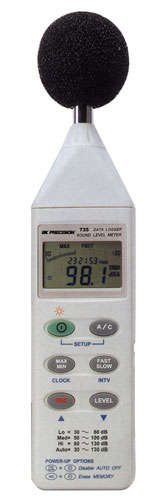

Model 735 – Datalogging Digital Sound Level Meter

The 732A offers the same robust features as the 735, providing 30-130 dB measurement capabilities in Low, Med, and Hi ranges with an accuracy of ±1.5 dB. It is an excellent solution for industrial noise measurement, OSHA compliance testing, and environmental sound monitoring. The 732A also includes frequency weighting A & C and fast/slow time weighting for versatile measurement options.

Key Features:

Measurement Ranges: 30-130 dB (Low, Med, Hi)
Accuracy: ±1.5 dB
RS-232 Interface: For data logging and analysis
Auxiliary Outputs: AC (1Vrms full scale) and DC (10mV/dB)
Backlit LCD: Provides easy readability in low-light conditions
Max/Min Function: Captures and holds peak measurements
Auto Power Off: For efficient battery management
Bargraph Display: For quick visual feedback

The 732A is a reliable and cost-effective solution for sound level monitoring.

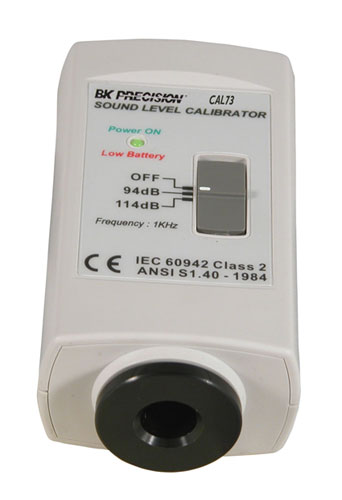

Model CAL73 – Standard Acoustic Calibrator

The CAL73 is a robust sound level calibrator designed to provide accurate calibration for sound level meters and other sound measurement devices. It supports 1-inch microphones directly and 1/2-inch microphones using the included adapter. Conforming to IEC 60942 (2003) Class 2 and ANSI SI.40-1984 standards, this calibrator ensures precise calibration for sound measurement equipment.

Key Features:

Calibration Output: 94 dB and 114 dB at 1kHz
Compatibility: Fits 1-inch and 1/2-inch microphones
Ease of Use: Simple, straightforward calibration process
Standards: Conforms to IEC 60942 Class 2, ANSI SI.40-1984

The CAL73 is perfect for ensuring your sound level meters maintain optimal accuracy during use.

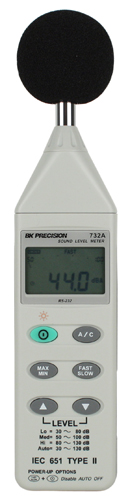

Model 732A – Digital Sound Level Meter

The 732A offers the same robust features as the 735, providing 30-130 dB measurement capabilities in Low, Med, and Hi ranges with an accuracy of ±1.5 dB. It is an excellent solution for industrial noise measurement, OSHA compliance testing, and environmental sound monitoring. The 732A also includes frequency weighting A & C and fast/slow time weighting for versatile measurement options.

Key Features:

Measurement Ranges: 30-130 dB (Low, Med, Hi)
Accuracy: ±1.5 dB
RS-232 Interface: For data logging and analysis
Auxiliary Outputs: AC (1Vrms full scale) and DC (10mV/dB)
Backlit LCD: Provides easy readability in low-light conditions
Max/Min Function: Captures and holds peak measurements
Auto Power Off: For efficient battery management
Bargraph Display: For quick visual feedback

The 732A is a reliable and cost-effective solution for sound level monitoring.

Common Features (732A & 735)

RS-232 Interface: For data transfer and logging
Max/Min Function: Capture peak noise levels
Auto Ranging: 30-130 dB
Resolution: 0.1 dB
AC/DC Signal Output: Auxiliary outputs for further analysis
Backlit LCD: Improves usability in low-light conditions
Auto Power Off: Preserves battery life

With B&K Precision’s sound level meters and acoustic calibrators, you can achieve precise, reliable sound measurements for a variety of applications, from industrial noise assessments to event crowd monitoring.

Data Sheet, Models 732A, 735, and CAL73

The post Sound Level Meters first appeared on Westek Electronics.

]]>
