Cell Testers


MRS-HR: Cell Test System for very high Currents

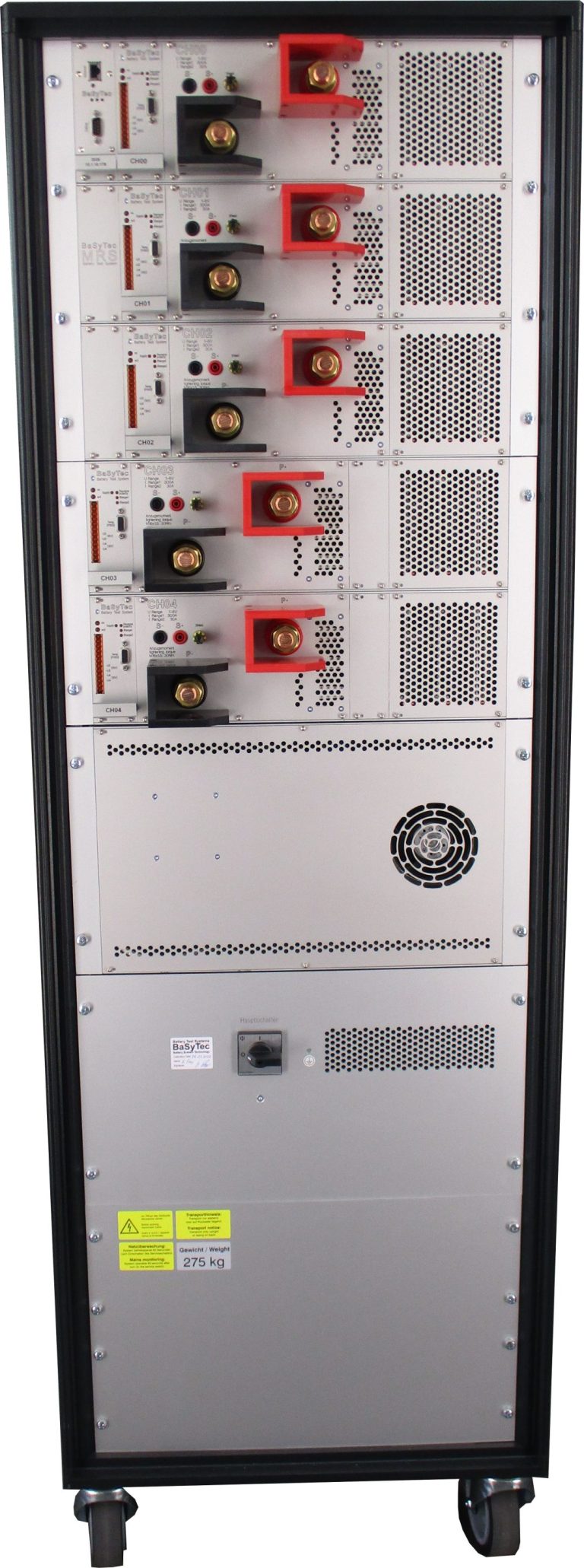

MRS-HR: Cell Test System for Very High Currents

The MRS-HR series is a robust and highly efficient cell test system designed for applications requiring very high current levels, accommodating up to 1000A per channel and reaching up to 2400A in parallel mode. The system’s switched-mode amplifier design ensures low heat generation, high efficiency, and a compact form factor, making it ideal for large cell testing and module testing up to 80V.

Read More »
February 9, 2025
lps-1-400x247-1

LPS-HR: Test Systems with small to medium power

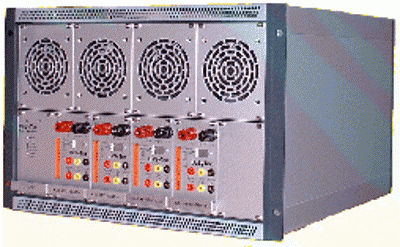

LPS-HR: Test Systems for Small to Medium Power Applications

The LPS-HR series is designed for testing applications that require small to medium power, with advanced features that make it a versatile choice for various battery testing scenarios. The LPS-HR series is an upgrade over the previous MDS, GSM, and LPS series, offering 24-bit resolution and additional options like parallel operation and a second current range. It is suitable for applications that require precise current control and high voltage testing, with configurable current ranges from 100 microamperes to 60 amperes and voltage capabilities up to 70V. The system supports a maximum power output of 600W per channel.

Read More »
February 9, 2025

XCTS: Extended Cell Test System

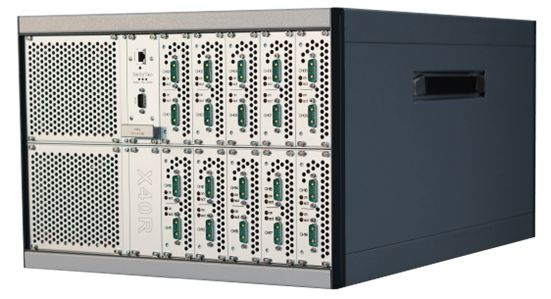

XCTS Mk II: Extended Cell Test System

The XCTS Mk II series is designed for single-cell testing with voltages up to 6V and currents ranging from 40A to 80A. The system’s amplifiers utilize switched technology, resulting in low heat generation, compact design, and high energy efficiency. When operated in parallel mode (optional), the system can handle currents up to 800A. The XCTS Mk II features automatic dynamic current range switching, making it a versatile and precise tool for battery testing.

Read More »
February 9, 2025

Cell Test System (CTS)

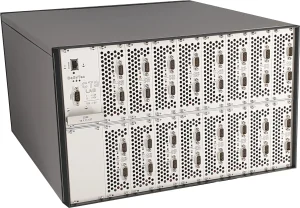

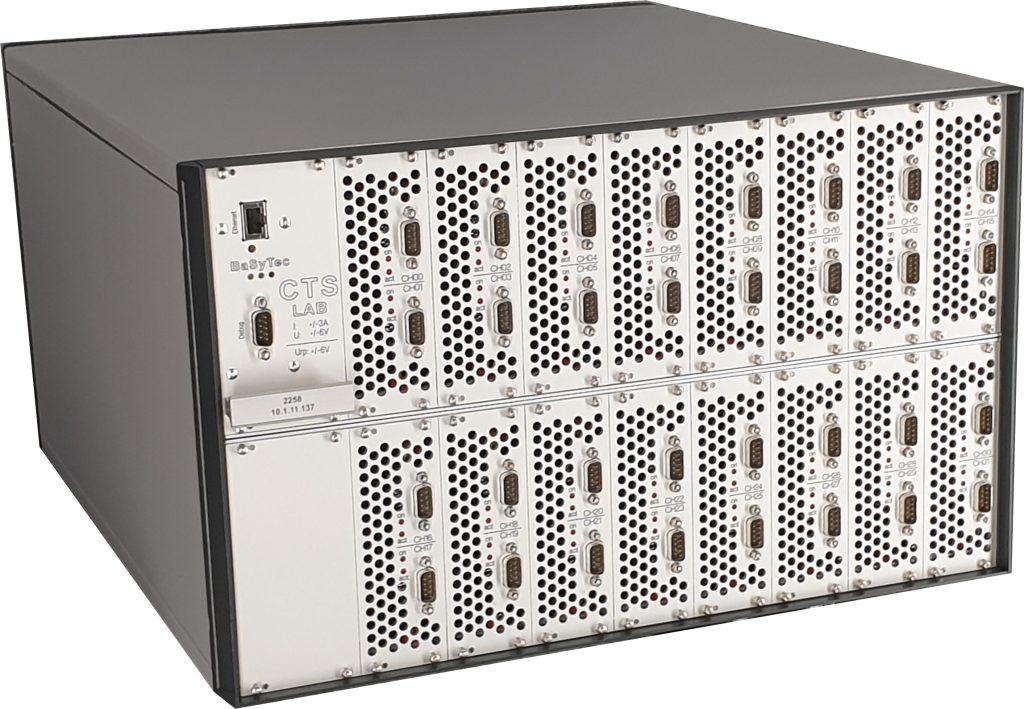

BaSyTec CTS Battery Test System

The BaSyTec CTS Battery Test System is designed for precise and efficient testing of small cells, including material probes in 3-electrode configurations and mid-size cells up to 20A. The system’s compact design enables it to be used as a tabletop unit with up to 32 independent test channels, each equipped with a temperature input for the cell. The system’s advanced features include automatic dynamic range switching, providing up to 200nA precision at low current levels.

Read More »
February 9, 2025
