Handheld Battery Analyzers

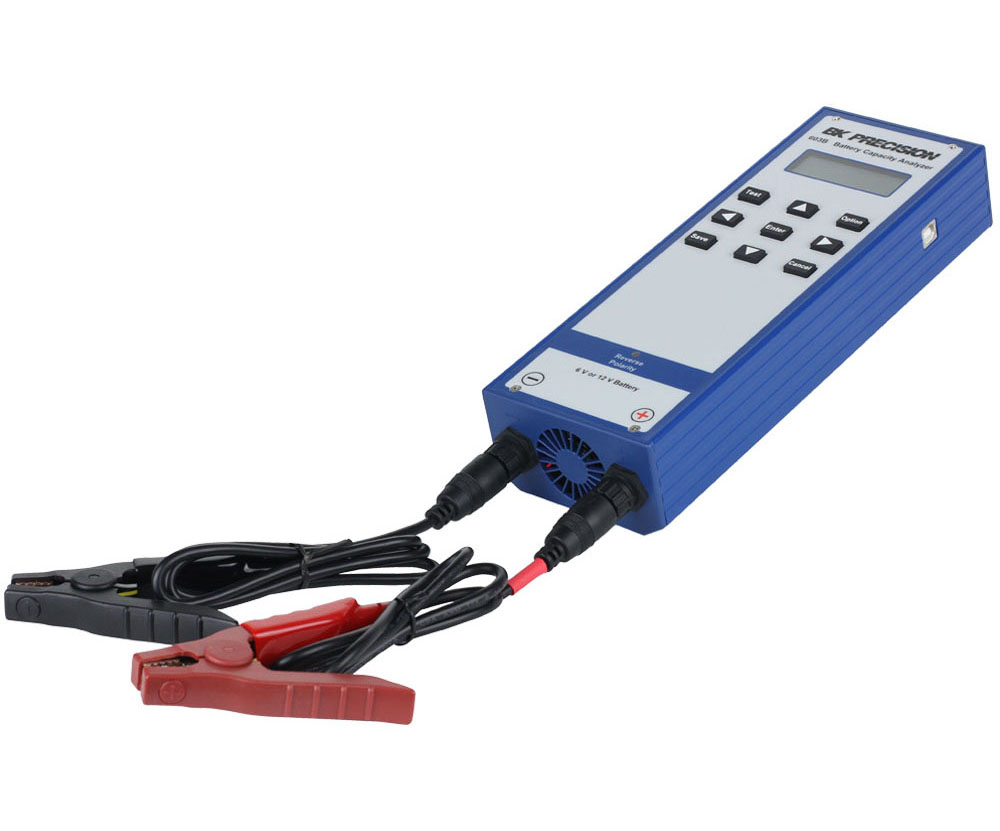

The 603B, 601B, and 600B are handheld battery capacity analyzers designed to test and maintain sealed lead acid (SLA) batteries used in various applications such as backup power UPS, emergency lighting, fire alarms, security systems, and more. These analyzers quickly evaluate a battery’s response to load resistance, measuring internal resistance, and displaying the remaining battery capacity as an indicator of the battery’s health.
Each model is optimized for different testing needs, from basic capacity measurements to more advanced features like internal resistance testing and record storage.
BA Series
BA Series Battery Analyzers
The BA Series battery analyzers are designed to accurately measure voltage and resistance in modern battery technologies, ensuring high accuracy, resolution, and speed. In addition to voltage and resistance, these instruments provide auxiliary measurements such as inductance, capacitance, dissipation factor, impedance, quality factor, reactance, and phase angle in both degrees and radians.
These analyzers are ideal for testing battery chemistries that respond to a 1 kHz AC stimulus signal, such as lead acid, lithium, and alkaline batteries. The BA6011 model supports measurements for battery packs up to 300V, while the BA6010 is suited for 60V measurements, perfect for individual battery cell testing.
BCS Series
BCS Series – 150W Battery Charger/Simulator
The BCS Series battery charger/simulator is designed for testing batteries and battery-powered devices, featuring precise source/sink capabilities, bipolar output, and variable output impedance. This series is ideal for performing battery charge, discharge, and simulation tests, making it a versatile tool for evaluating batteries and charger circuits used in various devices such as cell phones, wearables, and IoT devices.
Additionally, the BCS Series functions as a precise DC power supply with a fast transient response and low ripple/noise, ensuring stable operation for critical testing applications.
