Coupling Networks And Accessories For Immunity Tests

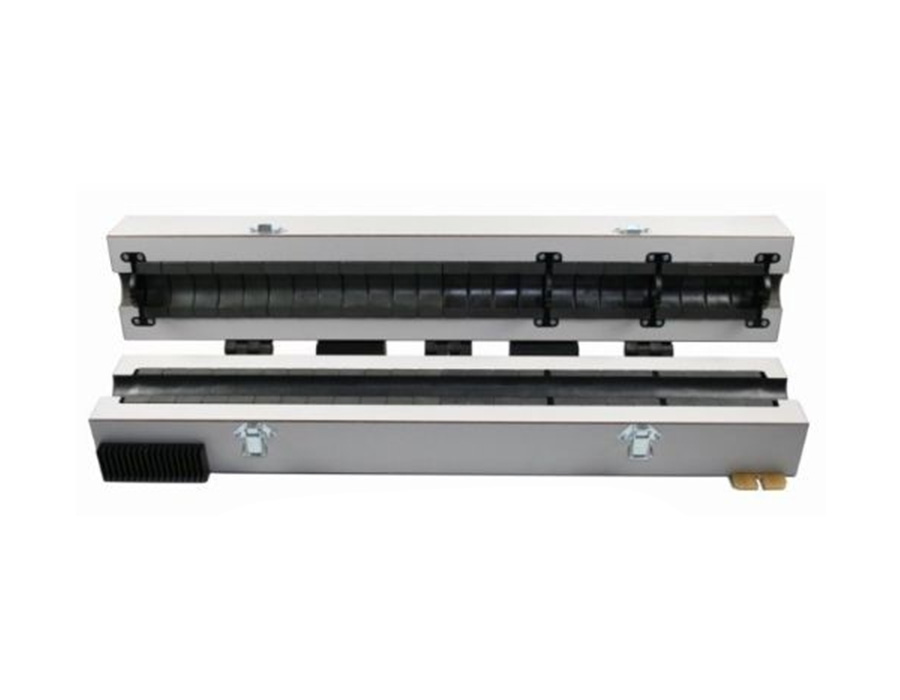

Coupling and Decoupling Networks CDNs for Immunity Testing (10 kHz to 400 MHz) Type Coupling / Feature CDN Coupling and decoupling networks for frequencies: 150 kHz – 230 MHz (IEC / EN 61000-4-6) CDG A 31xx Calibration adapter for CDNs, matching impedance 50/150 Ohm EMCL-20 EM coupling section for cable diameters up to 20 mm […]
Coupling Networks And Other Accesories For Surge Generators

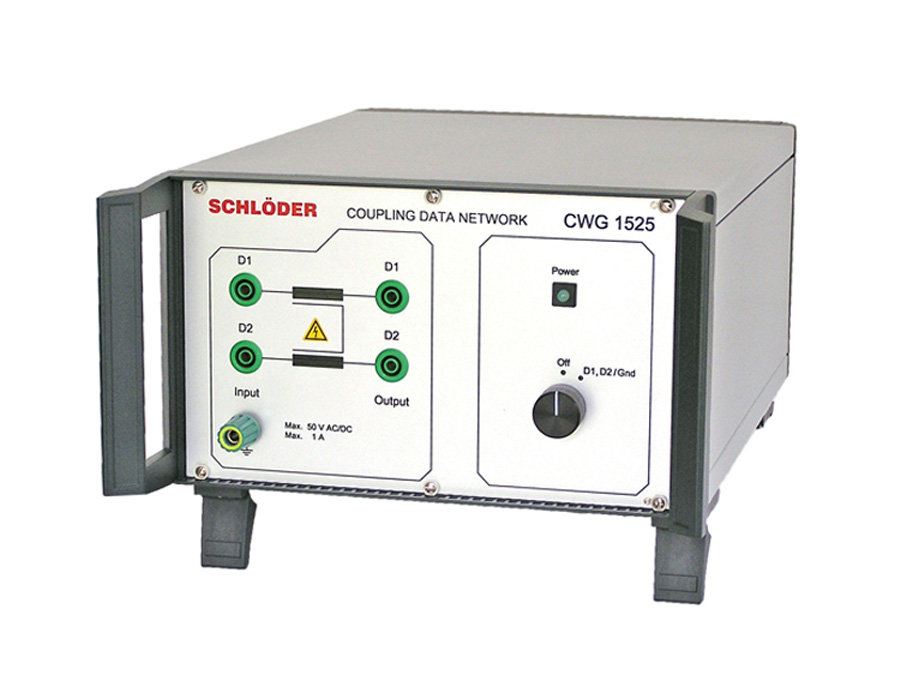

Coupling Networks / Decoupling Networkst Grid Applications / 3-Phase Type Rated Current Coupling/Feature CWG 520 4 x 16 A Surge + Burst / Standard Connecting Cables / Only Surge Test 3-Phase CDN Type Rated Current Coupling to / Feature CWG 1525 1 A 2 cables unshielded, symmetrical / fieldbus CWG 1526-4 / 1526-10 2 x […]
Coupling Networks And Other Accessories For Burst Tests

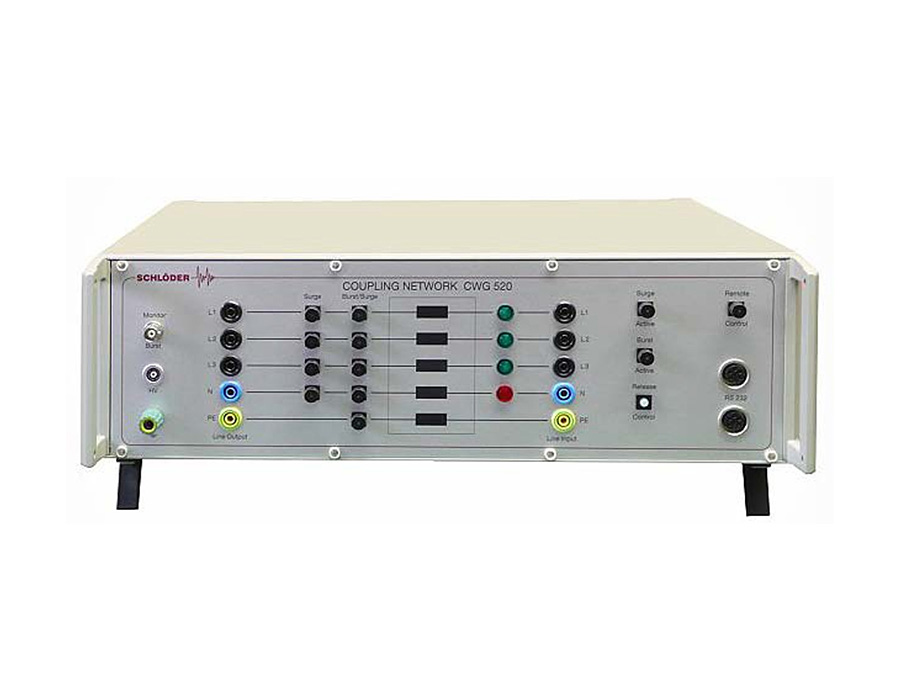

CDN | Coupling / Decoupling Network Burst 3-Phase CDN Type Rated Current Characteristics CWG 520 3-phase CDN 4 x 16 A For burst and surge tests with burst generator SFT 2400 / 1400 / 1420 or surge generator CWG 2500 / 1500 CDN | Coupling / Decoupling Networks for Burst Function AXOS 5 / 8 […]
