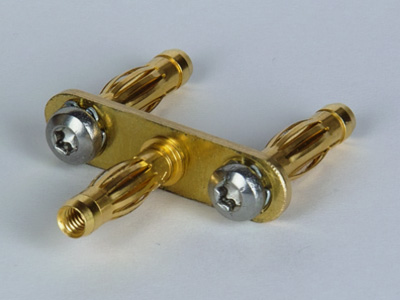

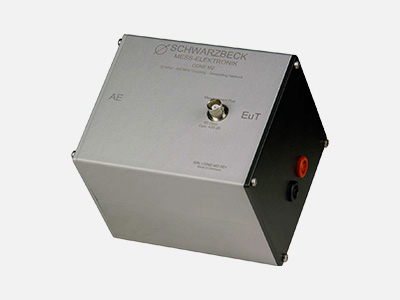

CA CDNE M2 Part A

Part A of the calibration or short adapter for CDNE M2

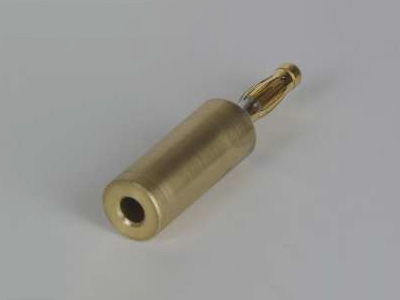

CA CDNE Part B

Part B of the calibration or short adapter for CDNE M2 or M3

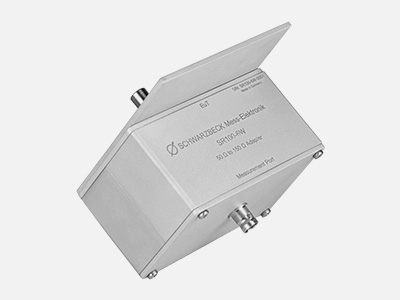

SR100-6W

The SR100-6W is an adapter for the calibration of a CDN (e.g. ISN S1, ISN S8) or a CDNE. Therefore it matches the 50 Ω measurement port to the 150 Ω system.
A low inductance resistor of 100 Ω is connected between the inner conductor of the N connector and the 4 mm banana jack. The construction is according to the picture 7 of the standard EN 61000-4-6.
Frequency Range: DC … 500 MHz
Max. Power: 6 W
Line Resistance: 100 Ω
Output: 4 mm Buchse
Insertion Loss 2xSR100-6W in series: 9.5 dB ± 0.5 dB
Input Connector: BNC 50 Ω
Weight: 340 g
Dimensions W x H x D: 105 mm x 64 mm x 70 mm
Reference Plane: 100 mm x 100 mm x 3 mm
Grounding: Case bottom
According to the Standards:
 EN 61000-4-6
 EN 55015
 CISPR 15
 CISPR 16-1-x
 CISPR 16-2-x

Datasheet SR100-6W

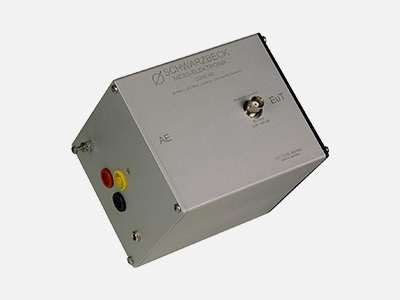

CDNE M3

CDNE with tight tolerances for CISPR 15 emission measurements with 3 mains conductors.

Datasheet CDNE M3

CA CDNE M3 Part A

Calibration or short adapter for CDNE M3 part A.
