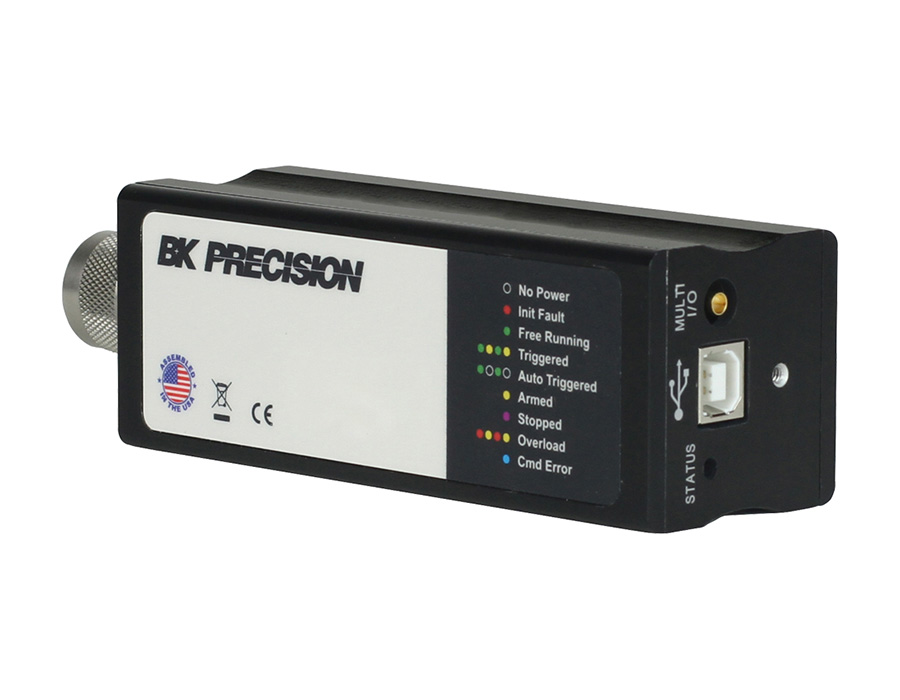

RFP3000 Series RF Peak Power Sensors

The RFP3000 Series RF Peak Power Sensors lead the market in peak power measurement performance, offering exceptional video bandwidth, rise times, and time resolution specifications. These sensors are designed for capturing elusive signals with precision, thanks to real-time processing and advanced hardware triggering, paired with sophisticated PC software.

The RFP3000 Series RF Peak Power Sensors are the ultimate choice for professionals seeking high performance and reliable power measurement solutions. With their advanced features and comprehensive software support, these sensors provide unparalleled accuracy and efficiency in capturing and analyzing complex signals.

Key Features:

Real-Time Power Processing: Ensures accurate and immediate measurement results.
Powered by USB: Eliminates the need for an external power supply, enhancing portability and ease of use.
Reliable Connection: SeaLATCH brand USB cable provides a secure and dependable connection.
High Time Base Resolution: Superior 100 ps time base resolution for detailed signal analysis.
Fast Acquisition Rate: Up to 100 MSPS, supporting 50 points per division for fine-grained measurements.
Synchronized Multi-Channel Measurements: Up to 8 channels with Power Analyzer software, with the capability to expand beyond 8 channels through remote control.
Outstanding Trigger Control: Low jitter hardware trigger control with less than 100 ps jitter, rms.
Trigger Hold Off: Specifically designed for bursted waveforms such as TDMA or GSM.
Adjustable Markers: Two adjustable markers with automatic measurement capabilities.
Automated Pulse Measurements: 16 automated pulse measurements for comprehensive signal analysis.
Crest Factor and Statistical Measurements: Includes CCDF (Complementary Cumulative Distribution Function) and other statistical measurements.
Advanced Software: Comes with B&K Precision’s Power Analyzer software for enhanced measurement and analysis.
Optional Stand-Alone Benchtop Power Meter: RFM3000 for additional measurement flexibility.

Models:

RFP3006: 6 GHz RF Power Sensor, Real-Time
RFP3008: 8 GHz RF Power Sensor, Real-Time
RFP3018: 18 GHz RF Power Sensor, Real-Time
RFP3118: 18 GHz RF Power Sensor, Real-Time, 6 MHz VBW
RFP3040: 40 GHz RF Power Sensor, Real-Time
RFP3140: 40 GHz RF Power Sensor, Real-Time, 6 MHz VBW

Applications:

The RFP3000 Series is ideal for a wide range of applications, including:
Commercial and Military Radar: Precision measurement for radar signals.
Electronic Warfare (EW): Accurate monitoring and analysis of EW signals.
Wireless Communications: Suitable for LTE, LTE-A, 5G, WLAN, and WiFi 6.
Consumer Electronics: Essential for testing and development in consumer electronic devices.
Education and Research: Valuable tool for academic and research purposes.
